2021년 봄 새롭게 론칭하는 HAWKE 501/RCG Cable gland 를 소개합니다.

활기찬 사월 만들어가고 계신지요.. 반갑습니다. TIATIP 입니다.

오늘 이 시간에는 케이블글랜드가 또 한 번 진화할 수 있다는 것을 보여주는 HAWKE 501/RCG 시리즈를 여러분께 소개드립니다. 호크에서는 올 해 혁신적이고 참신한 제품들을 여러 종류 선보일 예정이오니, 여러분의 많은 관심과 기대를 부탁드립니다.

호크에서 이번에 론칭한 RCG 케이블글랜드(정식명칭 501/RCG)는 케이블글랜드와 커넥터의 중간형태로 하이브리드타입이라고도 볼수 있을 것 같은데요. 안정적인 조건하에서 케이블글랜드 내부에서 핀(pin)과 소켓(sockt) 의 조합으로 빠르게 연결접속하거나 연결해제를 할 수 있어, 일반적인 설치환경에서는 물론 각종 시운전 및 overall 에 있어서도 사용자 편의성을 제공할 것으로 기대됩니다.

HAWKE RCG Series

More Than A Cable Gland

The 501/RCG Cable Gland combines the features of our marketing leading Cable Gland range with the Plug and Play benefits of a connector. The RCG Coupler allows an installer to extend an existing piece of cable without the need to use a junction box.

501/RCG



The 501/RCG Range is the ultimate hybrid of cable gland and connector

The range offers rapid termination and disconnection in a cost-effective package, which can reduce ownership expenses by decreasing the time it takes to carry out essential inspection, maintenance, repair and overhaul.

  • Reduced DowntimePlug and play products allow for much faster connection and disconnect than hard wiring.
  • Reduced Operating ExpensesQuicker installation, reduced downtime, minimized efforts and lower man hours required meanhuge cost benefits.
  • Easily Swap Out EquipmentEasier to pre-plan installation deployments with more precise hook-up time predictions.
  • Opportunity For Sealed For Life FittingsThe RCG provides the opportunity to make equipment such as lighting sealed for life

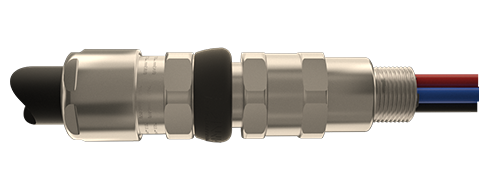

501/RCG Cable Gland

HAWKE 501RCG

The 501/RCG is certified Exe/Ext, and can be used for quick field connection of cables to equipment where historically hard wiring methods are used. The product offers cost savings when carrying out essential inspection and maintenance activities, including the capability to quickly swap out equipment on-site.

  • Quick disconnect pin and socket arrangement inside the body of a gland
  • Reversible Armour Clamp - For all types of armour and braid
  • Patented Cable Gland Tightening Guide - Helps prevent damage caused by over tightening
  • Unique Rear Seal - Offering ultimate sealing over an extremely wide cable acceptance range



501/RCG Cable Gland Coupler

HAWKE 501RCG Coupler

The 501/RCG Coupler is certified Exe, and is an inline quick connection product suitable for use as a cable extension device or an alternative to a junction box. Suitable for all types of cable, including unarmoured, armoured and braided.

  • Quick disconnect pin and socket arrangement inside a connection tube
  • Reversible Armour Clamp - For all types of armour and braid
  • Patented Cable Gland Tightening Guide - Helps prevent damage caused by over tightening
  • Unique Rear Seal - Offering ultimate sealing over an extremely wide cable acceptance range
  • External Earthing Tag supplied as standard



Technical Data

501RCG Series BRO 202102XX.pdf
0.63MB
501RCG Series Spec 202102XX.pdf
7.06MB





국내 제품상담 및 기술문의

CUSTOMER SUCCESS IDK

salespro.idk@gmail.com

Notice : Specification are subject to change without notice.

주의 : 여기 소개된 제품 및 시스템의 사양, 재질, 치수, 기타 내용과 정보는 제조/공급사의 사정이나, 성능향상을 위해 예고없이 단종/대체 되거나 변경되는 경우가 있을 수 있으므로 이용자 여러분의 양해를 구합니다. 기타 문의/상담은 국내 공식대리점 IDK를 통해 진행해 주시기 바랍니다.
