호크 Hawke Exe Enclosure Range 라인업 소개



안녕하세요 TIATIP 입니다.



오늘 이 시간에는 위험지역에 사용되는 호크 Hawke의 Ex'e' Enclosure Range 라인업에 대해 살펴보도록 하겠습니다.









Hawke

Exe Enclosure Range For Harsh and Hazardous Location







Hawke International have been producing Exe enclosures for over 30 years which are very highly regarded for their quality and exceptional strength - something extremely important in the demanding environments of the Oil and Gas, Petrochemical and Harsh and Hazardous industries.











1. PL Series



GRP Enclosures
Increased Safety Exe
IECEx / ATEX







2. S-Series



Stainless Steel Enclosures
Increased Safety Exe
IECEx / ATEX







3. EJB Series



Stainless Steel Enclosures
Increased Safety Exe
IECEx / ATEX







4. SK Series



With K-Mass® Fire Protection
Increased Safety Exe
IECEx / ATEX















Hawke

Exe Enclosure Range For Harsh and Hazardous Location











Hawke Full catalogues_20101103.zip

Hawke SK Enclosures_20130000.pdf

EJB Enclosure Hawke IDK.pdf

















내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com











저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

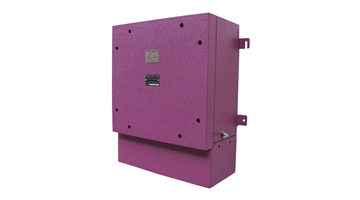

호크 Hawke SK-Series Stainless Steel Enclosure with K-Mass Fire Protection 기술사양



안녕하세요 TIATIP 입니다.



오늘은 새롭게 소개되는 호크 Hawke 의 SK-Series 에 대해 살펴보도록 하겠습니다.









Hawke

SK-Series Stainless Steel Enclosure with K-Mass® Fire ProtectionSK-Series Stainless Steel

Increased Safety Exe / Dual Certified ATEX - IECEx









Features



Hawke SK Range of Stainless Enclosures come with K-Mass® fire protection as standard, designed for safety systems such as fire protection and critical control systems. K-Mass® is a passive fire protection solution which is moulded to the Hawke Enclosure protecting the terminals inside from the extreme temperatures of hydrocarbon based fires for up to 30 minutes. K-Mass® is fire tested to UL 1709 in a hydrocarbon fire for a minimum of 30 minutes at a temperature of 1093°C/2000°F. Hawke Enclosures and K-Mass® coatings have been supplied and specified by the worlds major petrochemical companies for safety related products for over 30 years.













Materials & Finishes



Robust 316 Stainless Steel construction with 3mm thick gland plates.















Technical Data



01. Increased Safety ex logo II 2 GD Exe II ExtD

02. Apparatus Certificate No's Baseefa08ATEX0208X and IECEx BAS 08.0065X.

03. Suitable for use in: Zone 1, Zone 2, Zone 21 and Zone 22.

04. Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-7,

     IEC/EN 61241-0 and IEC/EN 61241-1.

05. Ingress Protection: IP66 to IEC/EN 60529.

06. Deluge Protection to: DTS01

07. Operating Temperature Range: -60°C to +80°C

08. Temperature class & ambient: T6 40°C, optional T5 with ambients up to 65°C.

09. 160mm, 210mm and 300mm deep options available.

10. Suitable for critical low current Control and Instrumentation applications.





Hawke

SK-Series Stainless Steel Enclosure with K-Mass® Fire Protection

SK-Series Stainless Steel

Increased Safety Exe / Dual Certified ATEX - IECEx

SK-Series Features







1. Rigid Slotted External Mounting Feet

Allows the enclosure to be mounted on most structures.



2. Internal/External Earth



3. Superior One Piece Silicone Sponge Gaskets

Providing IP66 and DTS01 protection.



4.  Single Gland Plate can be Specified on Face C





5. K-Mass® Fire Protection

Can be added to Hawke Enclosures with minimal increase to the overall footprint.



Adding K-Mass® to a Hawke Enclosure does not affect the certification, or the functionality of the enclosure. Not only is the enclosure protected, the cable glands are encased as well to ensure maximum protection and safety.



K-Mass® can be moulded to any of the Hawke Stainless Steel Enclosures without interferring with the easy access to terminals and cable glands for maintenance and/or inspection purposes.



Moulding K-Mass® to the Hawke Enclosure means that the fire protection can not be omitted.



K-Mass® protection does not insulate like other forms of fire protection and will only be activated during a fire.













Hawke SK Enclosures_20130000.pdf
