Hubbell 허벨의 2017년도 주요 프로덕트 라인업 훑어보기



안녕하세요  TIATIP 입니다. 오랜만에 포스팅시간을 갖네요.

더운 여름, 많은 불확실성과 변화속에서 어려움을 겪고 있는 육상플랜트 및 해양플랜트 그리고 선박조선산업에 시원한 훈풍이 다시 불어오길 희망하면서, 여러분을 응원하겠습니다.



오늘 이시간에는 허벨의 2017년도 주요 브랜드별 프로덕트 라인업을 간략히 소개드리고자 합니다. 허벨그룹의 대표 웹사이트(www.hubbell.com)  를 통해 보다 자세한 내용을 확인하실 수 있겠습니다.







1. KILLARK





Controls








The Killark portfolio of control products come in both metallic and non-metallic designs. Our broad line of controllers will work in harsh areas where corrosion and chemical breakdown can affect a product that is
not suitable for the environment.
• Push buttons, Selector switches, Mushroom ESTOPS & more
• LED Pilot Lights
• Class 1 Division 1 & 2, Zone 1 & 2, 21 & 22
• Quad Listed for UL, NEC, CSA, IECEx/ATEX directives





Plugs and Receptacles

• Plugs and receptacles provide solutions for safely supplying power
to fixed and portable equipment in hazardous location areas
• Copper-free, corrosion resistant aluminum construction
• NEMA “Blade”-style product line includes 15A/20A, 125V/250V
configurations
• Pin-and-sleeve devices available in up to 600V/ up to 200A
configurations
• Interchangeability with other manufacturer’s devices ensures
installation flexibility

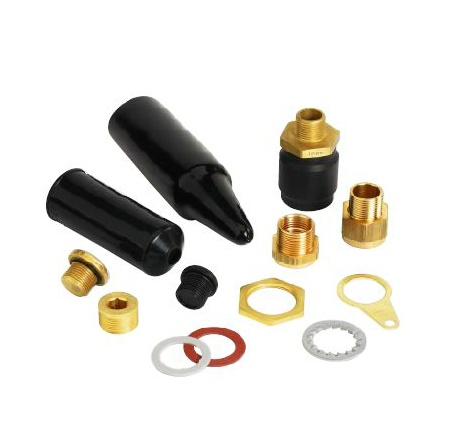

Connectors, Fittings, and Cable Glands




Killark/Hawke fitting lines not only exceed the demands of the challenging and hostile market but integrate ALL applications for industrial areas as well. Our Connectors, Seal Off, and features include:
• Fitting hub sizes from ½” to 4”
• Optioned copper-free aluminum or tri-coated Duraloy® iron
• Suitable for harsh and hazardous OR standard locations
• Corrosive resistant material
• NEC, CEC, ATEX and IEC certifications on variety of fittings and cable glands





Enclosures / OEM Solutions






• Killark enclosures can be factory or field modified per customer’s
specifications Extensive range of sizes in copper free cast aluminum
alloy, 316 stainless steel and high carbon painted steel.
• For Class I, Class I Div. 2, Class II, Ex db, Ex e Ex tb Zone 1 & 2, Type
4X IP66 ratings.
• The widest selections of viewing windows, control operators, switch
operating handles, drain breathers.
• QUAD Approvals for global certifications: UL, CSA, ATEX, IEC
Ex, INMETRO





Distribution and Control Equipment




• Our Harsh & Hazardous group offers solutions for your power
distribution and control needs. Lighting, trace heating and power
distribution, both factory-sealed and non-factory sealed.
• Quad Approval for global certification, our product versatility
allows Killark to use multiple enclosure coupling techniques to
cater to all demands of our clients.





Lighting






• Killark offers a full line Company offering; HID, Fluorescent, QL, Xenon, and LED technologies

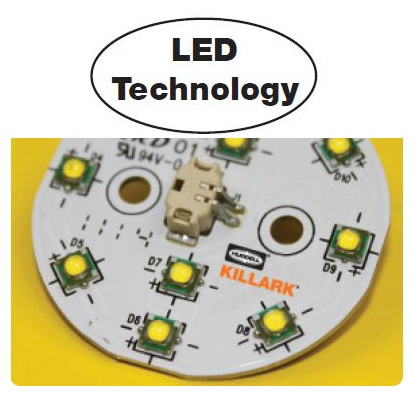

• Encompass the latest in long life, and energy and labor saving LED
technology.
• Many Quad listed products. Quad Listed for UL, NEC, CSA, IECEx/ATEX
directives
• Lighting Layout Design Services Available









2. Acme Electric



Land Rig Rated Transformers





• Structure, Core & Coil designed for land rig drilling applications
• Rigid supports for HV and LV terminals
• Low and Medium voltages available
• Forklift accessible base for ease of installation
• NEMA 3R outdoor enclosure





3. Burndy





HYGROUND


Compression Grounding
BURNDY HYGROUND is the safest, most costs-effective, time-efficient and easily inspected grounding system available today. HYGROUND can be used in even the most inclement weather conditions – rain, wind or snow.
• Easy installation – No special training necessary
• No galvanic corrosion – Made of pure wrought copper like the conductor
• Safe – Non hazardous installation
• Meets Industry Standards and Codes – IEEE 837, UL467, NEC, NFPA, and
more.







4. Chalmit





Protecta (Non-emergency and emergency)










Approved to: ATEX, IECEX, Inmetro, EAC
Features:
• Boasting a market leading 120,000 maintenance free hours
• Industry unrivalled performance and photometry
• Multiple mounting options: Ceiling, wall, suspended and pole mounted
options available
• IP66/IP67 ingress protection and DTS01 deluge protected
• Battery heating for low temperature emergency operat



NexLED




(Non-emergency and emergency)
Approved to: ATEX, IECEX, Inmetro, EAC, CSA
Features:
• Can be installed in gas groups IIA, IIB and IIC, with highly visible and
instant light
• Long life with no re-lamping required. Over 60,000 hours
continuous operation
• Highly energy efficient, with very low power consumption
• Available in both standard and emergency options, with low
temperature versions operating down to -45°C





5. Gai-Tronics





GAI-Tronics IP Solutions SP2






• Serverless IP paging and intercom system
• Simple operation with cutting-edge technology
• 2 to 4,096 stations
• UL, IEC, and ATEX approvals
• Type 4X, 12 & IP65, 66 Elemec3
• Networked IP Public Address and General Alarm (PA/GA) system
• Multiple single, N+1, and A/B architectures on a single network
• Up to 35.2 kW of audio power per controller in up to 64 zones
• Compliant to UKOOA, PFEER, IMO, ABS, SOLAS, DNV, CCS, and NORSOK
guidelines Hazardous Area Telephones
• World’s first UL Class I Division 1 VoIP telephone
• Native VoIP operation
• Noise-cancelling microphone
• Simple online configuration
• Type 4X, available PoE operation





6. Greason Reel





FESTOON SYSTEMS




I-Beam Festoon Systems and Trolleys
• Standard & Custom sizes
• 4 Types of Finish
• Stainless Steel
• Galvanized
• Marine Duty Paint
• Standard Paint
• Can be fitting with spark proof wheels


DRAG CHAINS
PowerTrak® Cable Carriers
House and protect expensive cables during movement
• Custom Designed for your needs
• Available in 316 Stainless
• 304 Stainless
• Carbon Steel with zinc plating







7. HADAR





HDL106 (Non-emergency and emergency)




Approved to: ATEX, IECEX, Inmetro
Features:
• Ex em construction
• Modular design allowing up to 6 interlinked luminaires, each providing a
delivered output of >5000lm
• 80,000 maintenance free hours
• Highly efficient, with instant on crisp white light output
• At only 6kg per module, it is an extremely lightweight solution
• Emergency version only 9kg, over 60% lighter than Exd products





8. HAWKE



Cable Glands


Approved to: ATEX, IECEx, Inmetro, EAC, cCSAus, Burea
Veritas, DNV, CNEX, UL, Soncap, ABS
Features:
• Features multiple patented features to offer unrivalled safety, ease of
installation and inspection and lowest lifetime cost of ownership
• Fully inspectable Exd barrier gland seals
• Only proven solution to prevent damage to cables exhibiting cold
flow characteristics



Exe Enclosures


Approved to: ATEX, IECEx, Inmetro, EAC, UL, ULc, cCSAus, Burea Veritas,
DNV, Soncap
Features:
• Available in 316 stainless steel or GRP with 34 standard sizes available
to suit every application

• Amazing flexibility

– available fully populated, drilled and assembled, or as empty component
certified enclosures
• Up to 55% greater aperture access than other manufacturers allowing
for faster termination and inspection



Ex Connectors




Approved to: ATEX, IECEx, Inmetro, EAC, cCSAus, Burea Veritas, DNV
Features:
• Complete range including fiber optic, data, instrumentation,
control and power connectors

• InstrumEx connectors offer live make-and-break functionality for
improved safety
• ControlEx connectors offer solutions for cables ranging from
3-core, up to 60 cores, and 0.5mm2 to 35mm2 conductors





9. HUBBELL Industrial Controls

Hubbell DC Devices






Heavy-Duty DC Contactor and Switch designs with 40+ years in-service
(Formerly produced by Allis-Chalmers/Siemens) used in rail/transit, gas and
oil well drilling equipment, mining machinery, and more.
• High DC-Current Interruption and Switching (Models range from 200A to 5000A)
• DC-Voltage Controlled (12-250VDC) (AC Control Available on Some
Models)
• Silver Alloy Main Contact Tips
• Silver Plated Current Carrying Parts
• High Dielectric & Mechanical Strength
• Up to 8 Auxiliary Contact Circuits





10. POWEROHM RESISTORS





Powerohm® Resistors




Resistor solutions for the Gas and Oil Industry

• Power Resistors
• Force Cooled Braking Resistors
• Brake Modules
• Neutral Grounding Resistors
• High Resistance Grounding Systems (HRG)





11. RIGPOWER





RigPower Connectivity




RigPower offers an extensive collection of connectivity solutions for the
drilling, industrial, and entertainment industry. Benefits include:
• High Amperage, Single Pole Connectors
• Amperages suitable for up to 1135A (Single Pole Devices) and up to
4000A (in Bolted Designs)
• Color Coded Connectors (10 Configurations available) allow for
ease of installation and reduction in misconnection of electrical phases
• Application specific features (such as available “Flexible Electromagnetic
Shield” for Variable Frequency Drive installations)

VFD-1 Series
• Service Ratings: 1135 Amps, 2000 Volts
• Small #24 Shell Size Footprint
• Contact Technology provides self-adjusting (Multilam) contact
force for resistance to the severe load variations and vibration
encountered in drilling service
• The conductivity of the cable shield braid is carried completely
through the connector to ensure uninterrupted 360 degree
protection of EMI radiation
• Cable-Receptacle mating pairs

• Available in nine colors for easy equipment/phase identification





12. Vantage Technology



XP STAR-LINE



Area Classification: Class I, Div. 1 & 2, Groups B, C & D
Class II, Div. 1 & 2, Groups F & G
Ex D IIC
Class I, Zone 1, AEx D IIC
II 2 GD Ex D IIC
Ambient: -45°C to 60°C
Ingress Protection / Type: IP 66 / 67
T-Code: T6 (T 70°C)
Listed By: UL / CSA / KEMA / QPS / CML
Compliance With: NEC / CEC / ATEX / IECEx
Conforming To: UL 1203 / UL 60079 / CSA 22.2 / E60079
EN 60079 / ISO-IEC 60079
Features:
• 10 through 100 Contact Control Inserts @ 250, 480 Vac or 125 Vdc
• 32, 64, 125 & 260A Power Inserts @ 1000Vac or 500Vdc
• Cable / Cord or Tapped NPT Mount Plug
• J-Box, Panel, NPT or In-Line Receptacle
• Live Make-Break @ 50/60 or 400Hz
• Aluminum or Stainless Steel





13. WIEGMANN



JIC and Traditional Wall Mount Enclosures

Industry Standards:
• UL Listed Types 4, 4X & 12
• NEMA Type 4, 4X & 12
• UL Classified IEC 60529 IP66
• CSA Certified

Features:
• Made in USA from 304 and 316 Stainless Steel
• Continuously welded seams
• Poured-in-place polyurethane door gasket
• With external door clamps or with ¼ Turn Latches
• Grained finish
• Extensive accessory offering
• Offered in sizes from 6”x6”x4” to 60”x36”x12” (HxWxD)
• Units with openings to accept disconnect handles are also offered





Technical Data

허벨, 킬락, 호크, 샬밋, Hubbell, Killark, Acme Electric, Burndy, Chalmit, Chalmit Lighting, Gai-Tronics, GaiTronics, Greason Reel, Hadar, Hawke, Hubbell  Industrial Controls, POWEROHM, PowerOhm Resistors, RIGPOWER, Vantage Technology, Wiegmann

Hubbell Products at a Glance 2017 EN.pdf

Note : Specifications are subject to change without notice.

소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문점을 통해 진행해 주시기 바랍니다.











국내 상담문의 및 기술지원

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

HUBBELL 허벨그룹 프로덕트 및 시스템 라인업소개 2015



안녕하세요 TIATIP 입니다.

해마다 새롭게 조정/개편되는 허벨그룹 프로덕트, 시스템 및 서비스 라인업에 대해

2015년말기준으로 관련자료를 소개드리고자 합니다.



허벨의 세가지 플랫폼인 HES, HLI 그리고 HPS 에 대해 많은 관심을 부탁드리겠습니다.

Hubbell Corporate Overview

Hubbell Incorporated is an international manufacturer of quality electrical and electronic products for a broad range of residential and non-residential construction, industrial and utility applications. With 2015 revenues of $3.4 billion, Hubbell Incorporated operates manufacturing facilities in the United States and around the world. The corporate headquarters is located in Shelton, CT.









Hubbell’s three platforms

– Hubbell Electrical Systems (HES), Hubbell Lighting (HLI) and Hubbell Power Systems (HPS) – offer a unique set of brands and products.









1. Hubbell Electrical Systems

Offering an array of electrical and electronic wiring devices, wire management systems, occupancy sensors and specialized wiring products for the marine and healthcare markets. A comprehensive source of electrical boxes, fittings and enclosures for a variety of world-wide markets including harsh / hazardous location, commercial and residential markets. Innovative solutions for high voltage power supplies and test equipment, heavy duty cable management, industrial, outdoor and hazardous location communications equipment.







Hubbell Electrical Systems (HES), headquartered in Shelton, Connecticut, includes the original business started in Bridgeport, Connecticut by Harvey Hubbell in 1888, the Wiring Device Kellems division. This group is now comprised of 30 different business units and a staff of more than 6,300 employees worldwide. Its success was born from excellent leadership, employee and customer loyalty, high quality products, and a dedicated sales force. HES offers a variety of products for the commercial, industrial, residential and institutional markets, including harsh & hazardous environments.

Brands:





2. Hubbell Lighting

Provides a full range of indoor and outdoor lighting products for commercial, industrial, institutional, sports lighting, landscape and residential markets, including green initiatives for vacancy sensors and daylight harvesting controls.





Hubbell Lighting (HLI) headquartered in Greenville, South Carolina, is a leader in lighting technology. HLI is ranked among the top lighting companies in the world with more than 20 brands and 3,000 employees. Their applications cover countless markets, including commercial, outdoor, industrial, hazardous location, lighting controls, emergency and exit, and downlighting and track lighting systems.

Brands:





3. Hubbell Power Systems

Providing a broad line of products and components to serve the utility industry and support the infrastructure for transmission and distribution of electrical power throughout the globe.





Hubbell Power Systems (HPS), headquartered in Columbia, South Carolina, operates power utility facilities in the US and other parts of the world. With more than 3,600 employees, HPS supplies products that deliver power to millions worldwide and competes in the generation, transmission, distribution, substation, communication, and commercial and industrial markets.

Brands:













Technical Data

허벨,킬락,샬밋,호크,Hubbell, Acme, Austdac, Bell, Bryant Electric, Burndy, Chalmit Lighting, GAI-Tronics, Gleason Reel Corp., Haefely Test AG, Hawke International, Hubbell Industrial Controls, Hubbell Marine Electrical Products, Hubbell Premise Wiring, Hubbell Wiring Device-Kellems, Killark Electric, Pulsecom, RACO, TYAMAC, Tettex Instruments, Transtar, Victor Lighting, Wiegmann, Wirecon, Alera Lighting, Architectural Area Lighting, Beacon Products, Columbia Lighting, Compass Products, Devine Lighting, Dual-Lite, HomeStyle Lighting, Hubbell Building Automation, Hubbell Industrial Lighting, Hubbell Outdoor Lighting, Kim Lighting, Kurt Versen, Precision-Paragon, Prescolite, Progress Lighting, Security Lighting Systems, Spaulding Lighting, Sportsliter Solutions, Sterner Lighting Systems, Whiteway, Anderson, Atlas, CDR, Chance, Chance-Civil, Electro Composites, Fargo Mfg. Company Inc.,Hubbell Cable Accessories, Hubbell Power Systems, Ohio Brass, PCORE Electric, Polycast, Quazite,USCO Power Switches



Hubbell brochure 2015 EN Rev5.pdf

Hubbell 2015 Annual Report.pdf





Note : Specifications are subject to change without notice.

소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문점을 통해 진행해 주시기 바랍니다.















국내 상담문의 및 기술지원

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com





저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

  1. 2017.07.31 16:41 신고
    댓글 주소 수정/삭제 댓글
    한국 귀사의 에이젼트 전화번호좀 알려주세요.
    감사합니다
  2. 2017.09.18 11:24 신고
    댓글 주소 수정/삭제 댓글
    안녕하세요 TIATIP 에디터입니다.

    문의주신 제품은 허벨그룹의 다양한 제품군 가운데, 일반산업형 전기자재 및 통신자재의 경우입니다. 따라서 하기 사이트를 통해 전문적인 상담지원이 가능하므로 직접 연락을 취해주시면 감사하겠습니다.

    한국허벨주식회사
    www.hubbell.kr

Chalmit LED Solutions For Harsh & Hazardous Locations 신제품 소개



안녕하세요 TIATIP입니다. 오늘 이 시간에는 샬밋(Chalmit)에서 새롭게 선보이는 LED Lighting 제품군에 대해 소개드리도록 하겠습니다.





Hubbell Harsh & Hazardous
Extreme environments demand superior performance, which is why you will find
Hubbell products and systems installed in some of the most arduous and safety
critical locations worldwide.




The Hubbell Harsh & Hazardous group combines dedicated, market leading brands within Hubbell portfolio to provide a complete package for companies operating in some of the toughest environments on the planet.


We are committed to providing quality products and services that will meet and
exceed your expectations. Our principal activities include the design and manufacture of rugged and hard wearing products. These include telephones and communication products, lighting, control gear and electrical connection products, all designed to operate primarily in extreme outdoor, hazardous and corrosive areas.









Sustainability


In 2010, Hubbell announced HSI – the Hubbell Sustainability Initiative - (HSI) - an enterprise-wide commitment to develop sustainable products and business practices.


The HSI mission is to: Achieve an ongoing culture of environmental responsibility with our employees, community, and industry implementing educational programs and sustainable practices.


Chalmit® have embraced this initiative and developed a range of energy efficient LED products manufactured in our Glasgow facility utilising lean principles. All products are sustainably manufactured with minimum impact to the environment around us.





Reliable Electrical Solutions from a brand you can trust









World Leader in Hazardous Area Lighting


Chalmit®, formerly known as Andrew Chalmers and Mitchell, was formed
in 1910 as a supplier of marine equipment to shipyards in the west of Scotland. Today we are one of the largest and most respected hazardous area and marine lighting companies in the world and we supply our products through sales offices and agents located in over 40 countries.


As part of the Hubbell Harsh and Hazardous division, Chalmit® can offer a global range of IEC & NEC products suitable for hazardous area lighting and apparatus installations on any continent and complying with all international codes and standards.









Our LED Product Range


Chalmit® has over a century’s worth of experience in providing cutting edge lighting solutions to hazardous and marine markets. We understand the unique characteristics of LED technology and have a proven track record, pioneering the world’s first Zone 1 LED luminaire; the NexLED back in 2005.


As a business we have invested in the development of solid state lighting
technologies to provide solutions that meet the exacting requirements
of the Oil, Gas & Petrochemical industries.


The result is a proven and reliable range of LED luminairies that compliment and enhance our fluorescent and HID products.


At the heart of each new design is our underlying philosophy - Quality, Reliability and Low Maintenance.



Made in Britain



All Chalmit® products are designed and manufactured in the UK.
We are proud to endorse and sustain a great tradition in engineering and invention.





Technical Data

Chalmit Lighting, Protecta, ScotiaEx, NexLED, Nevis, Solas, Arran, Nexxus II, Acclaim, ChalmLite5

0. Chalmit Lighting LED Lighting Solutions BRO 201503XX.pdf

Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.











국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit PROTECTA Industrial LED Linear Fluorescent 기술사양



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 Chalmit에서 새롭게 선보이는  LED방식의 Protecta Industrial 조명에 대해 살펴보도록 하겠습니다.





Chalmit Lighting

PROTECTA

Surface Mounted LED Linear Fluorescent Replacement

Industrial and Marine Applications





The Protecta Industrial has now been redesigned to accept LEDs, bringing forward benefits such as the extended life and low maintenance features.


Expected useful life to 70% of the initial lumens is 80,000 hours, but even when this is achieved the geartray which the LEDs are mounted on can be replaced, similar to a traditional lamp change. The LEDs are more powerful in lumens per watt figures than all fluorescent tubes, proving that LED technology is now truly a viable alternative.


One of the main benefits of LEDs is their ability to maintain a steady lumen output across the complete ambient temperature range and at low temperatures they greatly out perform fluorescent lamps.


The complete geartray assembly which includes the LEDs and driver can be retro-fitted into existing Protecta Industrial fluorescent product - bringing the existing enclosure up to date with the very latest technology. The proven track record of the very robust enclosure is not compromised as the complete enclosure remains unchanged.





Chalmit Protecta - Technical Data & Std. Cat. No.



Protecta LED Industrial IP66 201411XX.pdf



PRGI/02L/LE,PRGI/05L/LE,PRGI/02L/LE/EM,PRGI/05L/LE/EM,PRGI02LLE,

PRGI05LLE,PRGI02LLEEM,PRGI05LLEEM,SPOL4-100001,SPOL4-100002,

SPOL4-100003,SPRO4-0005,SPRO4-0006,SPRO4-0002,NPRO4-0007,

NPRO4-0008,NPRO4-0012,SPRO5-0005,SPROT-0021,SPOL4100001,

SPOL4100002,SPOL4100003,SPRO40005,SPRO40006,SPRO40002,NPRO40007,

NPRO40008,NPRO40012,SPRO50005,SPROT0021



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.



국내 상담문의 및 기술지원

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit ARRAN  Industrial LED Floodlight 기술사양



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 Chalmit 에서 새롭게 선보이는 Industrial Type의 LED Floodlight ARRAN Series 를 소개드리도록 하겠습니다.









Chalmit Lighting

ARRAN Series

LED Floodlight

Industrial and Marine Applications





The Arran LED floodlight range is low energy with an instant on output and up to 130,000 maintenance free hours.
Specifically designed for applications where moisture, dirt or dust are present, the floodlight is highly vibration resistant and can be used for industrial applications.





Chalmit ARRAN Series - Technical Data & Std. Cat. No.



Arran LED Industrial IP66 201411XX.pdf



ARRI/06L/LE,ARRI/10L/LE,ARRI/11L/LE,ARRI/15L/LE

ARRI06LLE,ARRI10LLE,ARRI11LLE,ARRI15LLE



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.



국내 상담문의 및 기술지원

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit ARRAN Exn LED Floodlight 기술사양



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 Chalmit에서 새롭게 선보이는 LED Floodlight 인 ARRAN Series에 대해 함께 살펴보고자 합니다.







Chalmit Lighting

Exn LED Floodlighting

ARRAN

ATEX Category3

Zone2 & Zone22 Applications







The Arran LED floodlight range is low energy with an instant on output and 80,000 maintenance free hours to L70 (70% initial lumens). Specifically designed for applications where moisture, dirt or dust are present, the floodlight is highly vibration resistant and can be used in locations where flammable vapours, gases or combustible dusts exist.





Chalmit ARRAN Series - Technical Data & Std. Cat. No.



Arran LED Exn Zone2 201408XX.pdf



ARRN/06L/LE,ARRN/10L/LE,ARRN/11L/LE,ARRN/15L/LE

ARRN06LLE,ARRN10LLE,ARRN11LLE,ARRN15LLE



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.

국내 상담문의 및 기술지원

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit Protecta Exe LED Linear Fluorescent Replacement 기술사양



안녕하세요 TIATIP 입니다. Chalmit Lighting에서 새롭게 선보이는 LED Linear Fluorescent, PROTECTA LED 사양에 대해 함께 살펴보도록 하겠습니다.





Chalmit Lighting

Exe LED Linear

Fluorescent Replacement

PROTECTA III

PROTECTA LED

ATEX Category2

ZONE1 & ZONE21 Applications









The Protecta III has now been redesigned to accept LEDs, bringing forward benefits such as the extended life and low maintenance features which are key to the oil and gas industry.


Expected useful life to 70% of the initial lumens is 110,000 hours, but even when this is achieved the geartray which the LEDs are mounted on can be replaced, similar to a traditional lamp change. The LEDs are more powerful in lumens per watt figures than all fluorescent tubes, proving that LED technology is now truly a viable alternative.


One of the main benefits of LEDs is their ability to maintain a steady lumen output across the complete ambient temperature range and at low temperatures they greatly out perform fluorescent lamps.

The complete geartray assembly which includes the LEDs and driver can be retro-fitted into existing Protecta III fluorescent product - bringing the existing enclosure up to date with the very latest technology. The proven track record of the very robust enclosure is not compromised as the complete enclosure
remains unchanged.



Chalmit Protecta LED - Technical Data & Std. Cat. No.



Protecta LED Exe Zone1 201411XX.pdf



PRGE/02L/LE,PRGE/05L/LE,PRGE/02L/LE/EM,PRGE/05L/LE/EM

PRGE02LLE,PRGE05LLE,PRGE02LLEEM,PRGE05LLEEM

SPOL4-100001,SPOL4-100002,SPOL4-100003,SPRO4-00005,SPRO4-00006

SPRO4-00002,NPRO4-00007,NPRO4-00008,NPRO4-0012,SPRO5-0005

SPROT-0021,SPOL4100001,SPOL4100002,SPOL4100003,SPRO400005,

SPRO400006,SPRO400002,NPRO400007,NPRO400008,NPRO40012,SPRO50005,

SPROT0021



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.







국내 상담문의 및 기술지원

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit Lighting 샬밋라이팅 Industrial Sterling II HF Stainless Steel Surface Mounted Fluorescent 사양소개



안녕하세요 TIATIP 입니다.

오늘 이 시간에는 샬밋라이팅의 일반산업형 조명제품군 가운데 Chalmit Sterling II HF Stainless Steel Surface Mounted Fluorescent  사양에 대해 살펴보도록 하겠습니다.





Chalmit

Sterling II HF Stainless Steel

Surface Mounted Fluorscent









The Sterling II High frequency luminaire is designed to provide a high quality, cost effective fluorescent luminaire for industrial areas, available in single and twin body versions. The construction features a marine grade 316S31 stainless steel body and transparent polycarbonate diffuser. These are secured using quick release stainless steel clips allowing easy access for rapid installation and maintenance.

The Sterling II H/F has a high frequency electronic control gear, available in 18W, 36W and 58W fluorescent lamp options.

Emergency models have an internal Ni-Cad battery. Please note that single lamp emergency versions are only supplied in a twin lamp body.

A version of the Sterling II is also available with a Copper & Iron ballast, please refer to the appropriate product page for details.








CAT Ref.

SS2I/118/BI,

SS2I/118/BI/EM

SS2I/118/EM/HF

SS2I/136/BI/HF

SS2I/136/BI/EM

SS2I/136/BI/EM/HF

SS2I/158/BI

SS2I/158/BI/EM

SS2I/158/BI/EM/HF

SS2I/218/BI

SS2I/218/BI/EM

SS2I/218/BI/EM/HF

SS2I/218/BI/HF

SS2I/236/BI

SS2I/236/BI/EM

SS2I/236/BI/EM/HF

SS2I/236/BI/HF

SS2I/258/BI

SS2I/258/BI/EM

SS2I/258/BI/EM/HF

SS2I/258/BI/HF

S3004-100001

S3004-100003

S3004-100004

SPOL4-100004

SPOL4-100005

SPOL4-100005





Technical Data

Sterling IISSHF Industrial.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 및 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 및 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.













국내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit Lighting 샬밋라이팅 Industrial Curie Luminaire Recessible Fluorescent 사양소개



안녕하세요 TIATIP 입니다.

오늘 이 시간에는 샬밋라이팅의 일반산업형 조명제품군 가운데 Chalmit Curie Luminaire Recessible Fluorescent  사양에 대해 살펴보도록 하겠습니다.







Chalmit

Curie Luminaire

Recessible Fluorscent









The Curie range of fluorescents is available in normal and emergency versions is designed purposely for use industrial applications where  recessible emergency lighting is required. The body is made from zinc coated sheet steel and the diffuser from prismatic polycarbonate with the textured side facing downwards. Where it meets the ceiling apeture the body is fitted with a flipper seal providing excellent sealing against surface irregularities.

The range is flexible to allow luminaires to be recessed into either plasterboard and modular (600x600mm & 600x1200mm) ceiling types. The control gear and batteries are mounted internally on a gear tray and access for lamp replacement and maintenance is simple and easy.

The emergency version has excellent emergency light output and duration in accordance with emergency lighting standards and comprehensice battery management & automatic self-testing is available as an option.








CAT Ref.

CURI/218/BI

CURI/218/BI/EM

CURI/236/BI

CURI/236/BI/EM

CURI/418/BI

CURI/418/BI/EM

CURI/436/BI

CURI/436/BI/EM





Technical Data

Curie Industrial.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.













국내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit Lighting 샬밋라이팅 Industrial Sterling II Stainless Steel Luminaire Surface Mounted Fluorescent 사양소개



안녕하세요 TIATIP 입니다.

오늘 이 시간에는 샬밋라이팅의 일반산업형 조명제품군 가운데 Chalmit Sterling II Stainless Steel Luminaire Surface Mounted Fluorescent  사양에 대해 살펴보도록 하겠습니다.













Chalmit

Sterling II Stainless Steel Luminaire

Surface Mounted Fluorscent









The Sterling II luminaire is designed to provide a high quality, cost effective fluorescent luminaire for industrial areas. It is available in single and twin body versions. The construction features a marine grade 316S31 stainless steel body and transparent polycarbonate diffuser. These are secured using quick release stainless steel clips allowing easy access for rapid installation and maintenance.

The Sterling II has a copper & iron switchstart ballast, available in 18W, 36W and 58W fluorescent lamp options.

Emergency models have an internal Ni-Cad battery. Please note that single lamp emergency versions are only supplied in a twin lamp body.

A version of the Sterling II is also available with a Highfrequency ballast (HF), please refer to the appropriate product page for details.









CAT Ref.

SS2I/118/BI

SS2I/118/BI/EM

SS2I/118/BI/EM/HF

SS2I/118/BI/HF

SS2I/136/BI

SS2I/136/BI/EM

SS2I/136/BI/EM/HF

SS2I/136/BI/HF

SS2I/158/BI

SS2I/158/BI/EM

SS2I/158/BI/EM/HF

SS2I/158/BI/HF

SS2I/218/BI

SS2I/218/BI/EM

SS2I/218/BI/EM/HF

SS2I/218/BI/HF

SS2I/236/BI

SS2I/236/BI/EM

SS2I/236/BI/EM/HF

SS2I/236/BI/HF

SS2I/258/BI

SS2I/258/BI/EM

SS2I/258/BI/EM/HF

SS2I/258/BI/HF

S3004-100001

S3004-100003

S3004-100004

SPOL4-100004

SPOL4-100005

SPOL4-100006





Technical Data

Sterling IISS Industrial.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다









국내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit Lighting 샬밋라이팅 Industrial Sterling II High Frequency Luminaire Surface Mounted Fluorescent 사양소개



안녕하세요 TIATIP 입니다.

오늘 이 시간에는 샬밋라이팅의 일반산업형 조명제품군 가운데 Chalmit Sterling II High Frequency Luminaire Surface Mounted Fluorescent  사양에 대해 살펴보도록 하겠습니다.









Chalmit

Sterling II High Frequency Luminaire

Surface Mounted Fluorscent











The Sterling II is designed to provide a high quality, cost effective fluorescent luminaire for industrial areas. It is available in single and twin body versions. The construction features a GRP body and polycarbonate diffuser. These are secured using quick release stainless steel clips allowing easy access for rapid installation and maintenance.

The Sterling II has a 230/240V 50Hz copper and iron ballast as standard, available in 18W, 36W and 58W fluorescent lamp options. Other supply voltage options are available.

Emergency models have an internal Ni-Cad battery.
Please note that single lamp emergency versions are only supplied in a twin lamp body.

A version of the Sterling II is also available with high frequency electronic ballast; please refer to the Sterling II HF product page for details.





CAT Ref.

SS2I/118/BI

SS2I/118/BI/EM

SS2I/118/BI/EM/HF

SS2I/118/BI/HF

SS2I/136/BI

SS2I/136/BI/EM

SS2I/136/BI/EM/HF

SS2I/136/BI/HF

SS2I/158/BI

SS2I/158/BI/EM

SS2I/158/BI/EM/HF

SS2I/158/BI/HF

SS2I/218/BI

SS2I/218/BI/EM

SS2I/218/BI/EM/HF

SS2I/218/BI/HF

SS2I/236/BI

SS2I/236/BI/EM

SS2I/236/BI/EM/HF

SS2I/236/BI/HF

SS2I/258/BI

SS2I/258/BI/EM

SS2I/258/BI/EM/HF

SS2I/258/BI/HF

S3004-100001

S3004-100003

S3004-100004

SPOL4-100004

SPOL4-100005

SPOL4-100006

NPRO4-0008

NPRO4-0012

NPRO4-0022







Technical Data

Sterling IIHF Industrial.pdf







Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.













국내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit Lighting 샬밋라이팅 Industrial Protecta Emergency Luminaire 사양소개



안녕하세요 TIATIP 입니다.

오늘 이 시간에는 샬밋라이팅의 일반산업형 조명제품군 가운데 Chalmit Protecta Emergency Luminaire 사양에 대해 살펴보도록 하겠습니다.









Chalmit

Protecta Emergency Luminaire

Surface Mounted Fluorscent













The Protecta (Industrial) is a robust GRP fluorescent with high IP rating designed for use in the most arduous environments. It is constructed from the same GRP body design as the hazardous area versions.

As such the industrial version features the Protecta's trademark quick-release GRP clamp bar which secures the hinged clear polycarbonate diffuser. This provides quick and easy access to the control gear.

All of the control gear is mounted on to the reflector/gear-tray which is fitted to the body. Ease of access to the lamps ensures that installation and maintenance times are kept to a minimum.

The Protecta Emergency comes complete with integral three hour Ni-Cd battery backup. The incoming mains supply to the luminaire has the facility for two live supplies: continuous live (Lc) which supplies constant power to the battery and switched live (Ls) which is for external switching, allowing the luminaire to be locally switched off without the emergency battery pack unintentionally operating the lamps.

If external switching is not required Lc and Ls are made common at the mains terminal block. ATEX Categories 2 & 3 (Zones 1 & 2) hazardous area versions are available.









CAT Ref.

PRGI/118/BI

PRGI/118/BI/EM

PRGI/136/BI

PRGI/136/BI/EM

PRGI/218/BI

PRGI/218/BI/EM

PRGI/236/BI

PRGI/236/BI/EM

NPRO4-0008

NPRO4-0012

SPOL4-100001

SPOL4-100002

SPOL4-100003

SPRO4-0002

SPRO4-0005

SPRO4-0006

SPRO5-0005

SPROT-0021





Technical Data

ProtectaE Emergency Industrial.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.

국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit Lighting 샬밋라이팅 Industrial Protecta Luminaire 사양소개



안녕하세요 TIATIP 입니다.

오늘 이 시간에는 샬밋라이팅의 일반산업형 조명제품군 가운데 Chalmit Protecta Luminaire 사양에 대해 살펴보도록 하겠습니다.





Chalmit

Protecta Luminaire

Surface Mounted Fluorscent









The Protecta (Industrial) is a robust GRP fluorescent with high IP rating designed for use in the most arduous environments. It is constructed from the same GRP body design as the hazardous area versions.

As such the industrial version features the Protecta's trademark quick-release GRP clamp bar which secures the hinged clear polycarbonate diffuser. This provides quick and easy access to the control gear.

All of the control gear is mounted on to the reflector/gear-tray which is fitted to the body. Ease of access to the lamps ensures that installation and maintenance times are kept to a minimum.

ATEX Categories 2 & 3 (Zones 1 & 2) hazardous area versions are available which are commonly used on Offshore Platforms, FPSO’s and FSO’s.









CAT REF.

PRGI/118/BI

PRGI/118/BI/EM

PRGI/136/BI

PRGI/136/BI/EM

PRGI/218/BI

PRGI/218/BI/EM

PRGI/236/BI

PRGI/236/BI/EM

NPRO4-0008

NPRO4-0012

SPOL4-100001

SPOL4-100002

SPOL4-100003

SPRO4-0002

SPRO4-0005

SPRO4-0006

SPRO5-0005

SPROT-0021





Technical Data

Protecta Industrial.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.



국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit Light 샬밋라이트 Industrial Fluorescent 제품라인업 소개



안녕하세요 TIATIP 입니다.

오늘 이 시간에는 Chalmit Light 샬밋조명가운데 일반산업환경에 적용가능한 Fluorescent 타입의 제품군에는 어떠한 것들이 있는지 대략 살펴보도록 하겠습니다.



(1) Chalmit Protecta Luminaire

Surface Mounted Fluorscent

The Protecta (Industrial) is a robust GRP fluorescent with high IP rating designed for use in the most arduous environments. It is constructed from the same GRP body design as the hazardous area versions.

As such the industrial version features the Protecta's trademark quick-release GRP clamp bar which secures the hinged clear polycarbonate diffuser. This provides quick and easy access to the control gear.

All of the control gear is mounted on to the reflector/gear-tray which is fitted to the body. Ease of access to the lamps ensures that installation and maintenance times are kept to a minimum.

ATEX Categories 2 & 3 (Zones 1 & 2) hazardous area versions are available which are commonly used on Offshore Platforms, FPSO’s and FSO’s.











(2) Chalmit Protecta Emergency Luminaire

Surface Mounted Fluorescent

The Protecta (Industrial) is a robust GRP fluorescent with high IP rating designed for use in the most arduous environments. It is constructed from the same GRP body design as the hazardous area versions.

As such the industrial version features the Protecta's trademark quick-release GRP clamp bar which secures the hinged clear polycarbonate diffuser. This provides quick and easy access to the control gear.

All of the control gear is mounted on to the reflector/gear-tray which is fitted to the body. Ease of access to the lamps ensures that installation and maintenance times are kept to a minimum.

The Protecta Emergency comes complete with integral three hour Ni-Cd battery backup. The incoming mains supply to the luminaire has the facility for two live supplies: continuous live (Lc) which supplies constant power to the battery and switched live (Ls) which is for external switching, allowing the luminaire to be locally switched off without the emergency battery pack unintentionally operating the lamps.

If external switching is not required Lc and Ls are made common at the mains terminal block.

ATEX Categories 2 & 3 (Zones 1 & 2) hazardous area versions are available.











(3) Chalmit Protecta Stainless Steel Luminaire

Surface Mounted Fluorescent

The Protecta industrial fluorescent is available with a stainless steel body. Protecta has excellent durability as it is constructed using high grade 316S31 stainless steel and a polycarbonate diffuser. A standard non-emergency and emergency versions are available in both 18W and 36W lamp options.

The product is intended for industrial applications where chemical agents are present which could attack GRP bodied luminaires. The stainless steel enclosure affords a high degree of ingress protection(IP66/67). Its design also utilised the Protecta's key features providing ease of access to lamps and control gear. This ensures that installation and maintenance will be completed quickly and efficiently.

The Emergency version is also available complete with 3 hour Ni-Cad battery back-up.











(4) Chalmit Acclaim  Luminaire

Recessible Fluorescent

The Acclaim recessible lighting range is suitable for a range of industry standard ceiling types. Available as both emergency and non-emergency versions, the Acclaim can be used with 18W or 36W fluorescent lamps. The Acclaim has an IP ratnig of IP54 and is also certified to for use in fire resistant ceilings up to solas B15 rating.



The polycarbonate diffuser is avaiable in clear, prismatic or with a glare control louvre. The mounting and cover details are flexible to allow luminaires to be recessed. The control gear and batteries are mounted internally on a gear tray and access for lamp replacement and maintenance is simple and easy. The emergency version has excellent light output and duration in accordance with emergency lighting standards.

ATEX Category 2 (Zone 1) hazardous area versions are available.











(5) Chalmit Sterling II Luminaire

Surface Mounted Fluorescent

The Sterling II is designed to provide a high quality, cost effective fluorescent luminaire for industrial areas. It is available in single and twin body versions. The construction features a GRP body and polycarbonate diffuser. These are secured using quick release stainless steel clips allowing easy access for rapid installation and maintenance.

The Sterling II has a 230/240V 50Hz copper and iron ballast as standard, available in 18W, 36W and 58W fluorescent lamp options. Other supply voltage options are available.

Emergency models have an internal Ni-Cad battery.
Please note that single lamp emergency versions are only supplied in a twin lamp body.

A version of the Sterling II is also available with high frequency electronic ballast; please refer to the Sterling II HF product page for details.











(6) Chalmit Sterling II High Frequency Luminaire

Surface Mounted Fluorescent

The Sterling II High frequency luminaire is designed to provide a high quality, cost effective fluorescent luminaire for industrial areas. It is available in single and twin body versions. The construction features a GRP body and polycarbonate diffuser. These are secured using quick release stainless steel clips allowing easy access for rapid installation and maintenance.

The Sterling II H/F has a high frequency electronic ballast, available in 18W, 36W and 58W fluorescent lamp options.

Emergency models have an internal Ni-Cad battery. Please note that single lamp emergency versions are only supplied in a twin lamp body.

A version of the Sterling II is also available with a Copper & Iron ballast, please refer to the appropriate product page for details.











(7) Chalmit Sterling II Stainless Steel Luminaire

Surface Mounted Fluorescent

The Sterling II luminaire is designed to provide a high quality, cost effective fluorescent luminaire for industrial areas. It is available in single and twin body versions. The construction features a marine grade 316S31 stainless steel body and transparent polycarbonate diffuser. These are secured using quick release stainless steel clips allowing easy access for rapid installation and maintenance.

The Sterling II has a copper & iron switchstart ballast, available in 18W, 36W and 58W fluorescent lamp options.

Emergency models have an internal Ni-Cad battery. Please note that single lamp emergency versions are only supplied in a twin lamp body.

A version of the Sterling II is also available with a Highfrequency ballast (HF), please refer to the appropriate product page for details.











(8) Chalmit Curie Luminaire

Recessible Fluorescent

The Curie range of fluorescents is available in normal and emergency versions is designed purposely for use industrial applications where  recessible emergency lighting is required. The body is made from zinc coated sheet steel and the diffuser from prismatic polycarbonate with the textured side facing downwards. Where it meets the ceiling apeture the body is fitted with a flipper seal providing excellent sealing against surface irregularities.

The range is flexible to allow luminaires to be recessed into either plasterboard and modular (600x600mm & 600x1200mm) ceiling types. The control gear and batteries are mounted internally on a gear tray and access for lamp replacement and maintenance is simple and easy.

The emergency version has excellent emergency light output and duration in accordance with emergency lighting standards and comprehensice battery management & automatic self-testing is available as an option.









(9) Chalmit Sterling II HF Stainless Steel

Surface Mounted Fluorescent

The Sterling II High frequency luminaire is designed to provide a high quality, cost effective fluorescent luminaire for industrial areas, available in single and twin body versions. The construction features a marine grade 316S31 stainless steel body and transparent polycarbonate diffuser. These are secured using quick release stainless steel clips allowing easy access for rapid installation and maintenance.

The Sterling II H/F has a high frequency electronic control gear, available in 18W, 36W and 58W fluorescent lamp options.

Emergency models have an internal Ni-Cad battery. Please note that single lamp emergency versions are only supplied in a twin lamp body.

A version of the Sterling II is also available with a Copper & Iron ballast, please refer to the appropriate product page for details.











Technical Data

0.Chalmit Lighting Master CAT 20110611 02.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.









국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com





저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit Light 샬밋라이트 Zone 1 Fluorescent  제품라인업 소개



안녕하세요 TIATIP 입니다.

오늘 이 시간에는 Chalmit Light 샬밋조명가운데 방폭위험지역 Zone 1 에 적용가능한  Fluorescent 타입의 제품군에는 어떠한 것들이 있는지 대략 살펴보도록 하겠습니다.



(1) Chalmit Protecta III Luminaire

Ex e Fluorescent / ATEX Category 2

The Protecta III hazardous area Ex e fluorescent luminaire is designed for use in Zone 1 areas The rugged Protecta combines high quality and low maintance. It is constructed of a glass reinforced polyester (GRP) body and a polycarbonate diffuser to resist highly saline and other harsh, corrosive environments.

Major features of the luminaire are the strength of the enclosure and mounting points together wih the very high degree of ingress protection afforded by the simple reliable construction.

All the control gear is mounted on a gear tray. This ease of access to lamps and control gear ensures that installation and maintenance will be completed quickly and efficiently.







(2) Chalmit Protecta III Emergency Luminaire

Ex e Fluorescent / ATEX Category 2

The Protecta III Ex e emergency luminaire is a technologically advanced and high quality fluorescent suitable for use in Zone 1 and Zone 21 hazardous areas. The luminaire incorporates comprehensive self testing features to ensure lamp, battery and supply integrity. The Protecta construction has a glass reinforced polyester (GRP) body and polycarbonate diffuser, this makes it highly resistant to saline and corrosive environments, ideal for use on an Offshore Platform or FPSO.

The Protecta fluorescent is available as both maintained and non-maintained versions. During emergency operation light output can be up to 50% of one lamp with 90 minute duration as standard.

Other key features of the luminaire include extreme durabilty due to the rugged enclosure design and toughened mounting points together combined with very high ingress protection. The Protecta's simple construction ensures ease of access to lamps and control gear making installation and maintenance both quick and efficient.







(3) Chalmit Protecta III Stainless Steel Emergency

Ex e Fluorescent / ATEX Category 2

The hazardous area Ex e Protecta III fluorescent is also available in a stainless steel body version. This product shares the technical features of the GRP bodied range but provides increased mechanical protection for the toughest of environmental conditions.

The durability of the stainless steel Protecta is ensured due to its construction from high grade stainless steel and a polycarbonate diffuser. The product is intended for applications where a risk of mechanical damage or exposure to chemical agents exist.

The enclosure also affords the high degree of ingress protection(IP66) required for use in Zone 1 and Zone 21 hazardous areas. The design  provides ease of access to lamps and control gear ensuring that installation and maintenance will be completed quickly and efficiently.







(4) Chalmit Lomond Emergency Luminaire

Ex e Fluorescent / ATEX Category 2

The Lomond Ex d fluorescent is a traditional flameproof luminaire for use with linear and compact fluorescent lamps. It is suitable for Zone 1 and Zone 21 hazardous areas.

The Lomond is designed for applications are where white instant light is needed. The aluminium and glass construction is suitable for aggressive chemical environments such as paint spraying, which could otherwise attack plastics.

An emergency version with the 8W lamp is particularly suitable for over door lighting. This is designed for maintained operation as standard, a non-maintained emergency option is also available.

The design features a single flameproof path giving easy access for wiring, lamp replacement and to the control gear. The cable entry is the simple direct type using flameproof Ex d cable glands.





(5) Chalmit Acclaim Recessible Luminaire

Ex e Fluorescent / ATEX Category 2

The Acclaim range fluorescent luminaires is certified for use in Zone 1 and Zone 21 hazardous areas. It is designed for use in offshore accommodation areas and control rooms where it provides recessible emergency and escape lighting.

Manufactured from zinc coated sheet steel the luminaire is suitable for installation in fire resistant ceilings up to solas B15 rating. The polycarbonate diffuser is available in clear, prismatic or with a glare control louvre. The mounting and cover details are flexible to allow luminaires to be recessed into a variety of ceiling types..

The control gear and batteries are mounted internally on a gear tray and access for lamp replacement and maintenance is simple and easy. The emergency version has excellent light output and duration in accordance with emergency lighting standards. Comprehensive self-testing periodically confirms the availability of sufficient emergency duration.







Please note: The Acclaim III is supplied with a high frequency self-test ballast. If using the Acclaim for sleeping quarters, please select the non-self test option (Suffix to Cat No. /NST).



(6) Chalmit Curie Elite Recessible Luminaire

Ex e Fluorescent / ATEX Category 2

available in normal and emergency versions. It is designed for use in Oil & Gas and Marine environments where it provides working, recessible emergency and escape lighting. The body is made from zinc coated sheet steel and the diffuser from prismatic polycarbonate with textured side facing down. Where it meets the ceiling apeture the body is fitted with a flipper seal providing excellent sealing against surface irregularities.

The range is flexible to allow luminaires to be recessed into either plasterboard and modular (600x600mm & 600x1200mm) ceiling types. The control gear and batteries are mounted internally on a gear tray and access for lamp replacement and maintenance is simple and easy.

The emergency version has excellent emergency light output and duration in accordance with emergency lighting standards. Comprehensive self-testing periodically confirms the availability of sufficient emergency duration.



Please note: The Curie Elite is supplied with a high frequency self-test ballast. If using the Curie for sleeping quarters, please select the non-self test option (Suffix to Cat No: /NST).








 Technical Data

0.Chalmit Lighting Master CAT 20110611 02.pdf



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.









국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit Light 샬밋 Fluorescent 제품라인업 소개



안녕하세요 TIATIP 입니다.

오늘 이 시간에는 Chalmit Light 샬밋조명가운데 Fluorescent 타입의 제품군에는 어떠한 것들이 있는지 대략 살펴보도록 하겠습니다.







1. Zone 1

(1) Chalmit Protecta III Luminaire

Ex e Fluorescent / ATEX Category 2







(2) Chalmit Protecta III Emergency Luminaire

Ex e Fluorescent / ATEX Category 2







(3) Chalmit Protecta III Stainless Steel Emergency

Ex e Fluorescent / ATEX Category 2







(4) Chalmit Lomond Emergency Luminaire

Ex e Fluorescent / ATEX Category 2







(5) Chalmit Acclaim Recessible Luminaire

Ex e Fluorescent / ATEX Category 2







(6) Chalmit Curie Elite Recessible Luminaire

Ex e Fluorescent / ATEX Category 2





2. Zone 2

(1) Chalmit Sterling II Luminaire

Ex n Fluorescent / ATEX Category 3







(2) Chalmit Sterling II Emergency Luminaire

Ex n Fluorescent / ATEX Category 3







(3) Chalmit Sterling II Stainless Steel Luminaire

Ex n Fluorescent / ATEX Category 3







(4) Chalmit Sterling II Emergency Stainless Steel Luminaire

Ex n Fluorescent / ATEX Category 3







(5) Chalmit Protecta II Luminaire

Ex n Fluorescent / ATEX Category 3



3. Industrial

(1) Chalmit Protecta Luminaire

Surface Mounted Fluorscent







(2) Chalmit Protecta Emergency Luminaire

Surface Mounted Fluorescent







(3) Chalmit Protecta Stainless Steel Luminaire

Surface Mounted Fluorescent







(4) Chalmit Acclaim  Luminaire

Recessible Fluorescent







(5) Chalmit Sterling II Luminaire

Surface Mounted Fluorescent







(6) Chalmit Sterling II High Frequency Luminaire

Surface Mounted Fluorescent







(7) Chalmit Sterling II Stainless Steel Luminaire

Surface Mounted Fluorescent







(8) Chalmit Curie Luminaire

Recessible Fluorescent





(9) Chalmit Sterling II HF Stainless Steel

Surface Mounted Fluorescent







Technical Data

0.Chalmit Lighting Master CAT 20110611 02.pdf



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.

국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 Solas LED Floodlight 기술사양



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 일반산업형 조명군 가운데 Chalmit Solas LED Floodlight 제품에 대하여 살펴보겠습니다.

Chalmit Lighting

Solas LED Floodlight

Emergency LED Floodlight







The Chalmit Solas is a new generation of LED lighting ideal for installations where area lighting is required but traditional re-lamping can be difficult.

The product uses ultra bright white LEDs to provide the illumination required for task and working areas. Output is equivalent with a 70W HPS lamp.







The luminaires rugged construction of cast aluminium and toughened flat glass is suitable for the most environmentally challenging areas, offshore and marine environments.

Solas is available as an emergency version which is operable in either maintained mode or non-maintained mode. This gives the flexibility of using the luminaire for both normal lighting and in emergency situations. A remote inhibition facility is also available.









The LEDs operate at 100% lumen output when the power fails for a duration of 90 minutes. Battery recharge time is 24 hours. They also provide instant on lighting from both mains or battery mode.









CAT REF.

SOLD/O34/LE

SOLD/034/LE/EM

SOLD/034/LE/EM/NM

S2610-0001

S2610-0005





Technical Data

Solas Industrial.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.





국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 487 EPDM Floodlight 기술사양



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 일반산업형 조명군 가운데 Chalmit 487 EPDM Floodling 사양에 대해 살펴보도록 하겠습니다.





Chalmit Lighting

487 EPDM Floodlight

Industrial Application







The Chalmit 487 compact, robust and weatherproof EPDM floodlight is versitile in its mounting suitability as this is available in a base-mounted version (/B) and pole-mounted option (/P). The range has excellent vibration resistance making it ideal for use in hostile marine environments.





Manufactured from EPDM rubber, the Chalmit 487 has a toughened front glass and wire guard for maximum protection. Ingress Protection of IP54 (with wire guard) and IP67 version available (silicone sealing ring fitted to glass. No guard fitted) with the suffix of /IP67 to the partcode.









The Chalmit 487 is suitable for GLS lamps up to 200W wtih a recommended maximum continuous operating ambient temperature of +30°C and a minimum temperature of -40°C.





CAT REF.

487I/200/GL




Technical Data

487 Industrial.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.







국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 458 EPDM Floodlight 기술사양



안녕하세요 TIATIP입니다. 오늘 이 시간에는 샬밋 일반조명제품군 가운데 Chalmit 458 EPDM Floodling 에 대해 살펴보도록 하겠습니다.





Chalmit Lighting

458 EPDM Floodlight

Industrial Application







The Chalmit 458 is high wattage, weatherproof, robust EPDM floodlight is versitile in its mounting suitability as this is available in a base-mounted version (/B) and pole-mounted option (/P). The range has excellent vibration resistance making it ideal for use in hostile marine environments.





The Chalmit 458 is manufactured from EPDM rubber with a heavy duty borosilicate front glass and wire guard for maximum protection. The Chalmit 458 is suitable for GLS and hps lamps with maximum continuous operating temperature of +30°C.

Models with GLS lamps can operate at an ambient temperature as low as -40°C. A universal control gear box is required for models with hps lamps.

Available in 150W HPS, 250W HPS and 300W GLS lamp options.







CAT REF.

458I/150/HS

458I/250/HS

458I/300/GL



Technical Data

458 Industrial.pdf



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다





국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 Dexlux Floodlight 기술사양



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋조명가운데 일반산업형으로 사용되는 Chalmit Dexlux Floodlight 에 대해 살펴보고자 합니다.





Chalmit Lighting

Dexlux Floodling

Stainless Steel Luminaire

Industrial Application





The Chalmit Dexlux floodlight range is constructed from marine grade stainless steel with toughened glass cover and is designed for use in hostile and corrosive environments. ingress protection(IP) rating to IP66/67.

The floodlight range are available with a range of tungsten halogen lamp options, 200W, 500W & 1000W





Installation and maintainance of lamps can be easily obtained via the front cover and quick release stainless steel clips.

In addition to being compact and lightweight, there are a number of additional options such as an anti-vibration damper assembly, anti-glare shield and wire guard making the Chalmit Dexlux excellent for use in harsh environment.





Technical Data & Std. Cat. No.

Dexlux Industrial.pdf



DEXI/1000/TL,DEXI/200/TL,DEXI/500/TL,E0850-0024,E0850-0025,E0850-0041

N8004-0215,N8004-0269,N8234-0001,S8000-0001



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.





국내 상담문의 및 기술지원

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 503 Floodlight 기술사양



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 일반산업형 조명가운데, Chalmit 503 Floodlight 사양에 대해 알아보겠습니다.



Chalmit Light

503 Floodlight

Alumium Luminaire

Industrial Application





 The Chalmit 503 is a high power floodlight designed for the most arduous environments. It is suitable for 600W and 1000W hps lamps and 1000W Tungsten Halogen lamps and a 2000W MH lamp.



The Chalmit 503 has a robust, corrosion resistant, low pressure die cast LM6 aluminium alloy enclosure (a PTFE protective coating can be applied if required) with a toughened glass window. For HPS models, the control gear is housed in a control gear box mounted on the leg.



The use of the Chalmit 503 will give extremely high levels of illumination from a small number of floodlights, greatly reducing installation and maintenance costs. Zone 2 Ex N versions are available.







CAT REF.

503I/1000/HS/IG

503I/1000/MH/IG

503I/2000/MH/IG

503I/2000/TH

503I/600/HS/IG

S2000-0007

S2000-0019

S5030-0007

S5030-0008





Technical Data

503 Industrial.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.





국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 Maxinex & Micronex 기술사양



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 일반산업형 Floodlight 가운데 Chalmit Maxinex & Micronex 제품군에 대해 살펴보도록 하겠습니다.









Chalmit Lighting

Maxinex & Micronex

Asymmetric Floodlight

Industrial Application





The Maxinex and Micronex are a range of two industrial asymmetric floodlights, one for 70W double ended High Pressure Sodium or Metal Halide lamps and the larger for 150W to 400W tubular High Pressure Sodium or Metal Halide lamps.

The asymmetric reflector design enables the light beam to be thrown forward for long distance lighting and concurrently assuring that the lighting below the pole of mounting location is also effectively lit without having to tilt the floodlight at high aiming angles. Both luminaires share a high IP66/67 rating.









The compact design features of these floodlights ensures reduced weight and low windage. This helps reduce installation costs and it allows lighter mounting systems. Both luminaires have hinged front covers access via front cover assembly secured by stainless steel screws for easy access for lamp maintenance.



CAT REF.

MAXI/150/MS

MAXI/250/MS

MAXI/400/MS

SMAX4-0001

MICI/070/MS

SMIC1-1001



Technical Data

Maxinex Micronex Industrial.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다





국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 800 Series Floodlight 기술사양



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 일반산업형 Floodlight 가운데, Chalmit 800 Series Floodlight 에 대해 살펴보도록 하겠습니다.







Chalmit Lighting

800 Series Floodlight

Stainless Steel Luminaire

Industrial Application





The 800 Series is an asymmetric floodlight range specifically designed for corrosive atmospheres. Constructed from marine grade stainless steel, the range is fitted with internal control gear and can be quickly relamped by removing the toughened glass front cover via the specially designed front cover clamps





There is the option of a remote gear box for all HPS and metal halide lamp models although for certain models this is standard. Other options include M25 cable entries, auxillary tungsten halogen lamps, looping, narrow beam reflector and timed cut-out ignitor.





For high vibration applications there is the option of a strengthened mounting arrangement for added safety.



ATEX Category 3 (Zone 2) hazardous area versions are available.








CAT REF.

844I/070/MS

S8444-0001

S8444-0002

S8444-0005

854I/100/HS

854I/150/MS

854I/250/MS

854I/400/MS

854I/500/TH

S2400-0002

S8544-0002

S8544-0004

S8544-0007

864I/150/HS/120

864I/250/HS/120

864I/250/MS

864I/250/MS/120

864I/400/HS/120

864I/400/MS

864I/600/HS

S2400-0002

S8644-0002

S8644-0004

S8644-0008





Technical Data

800Series Industrial.pdf



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다









국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 Floodlight 일반 산업형 라인업 소개



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 일반산업형 조명인 Chalmit Floodlight의 종류와 관련 사양에 대해 살펴보겠습니다.









1. 800 Series Floodlight

Stainless Steel Luminaire





The 800 Series is an asymmetric floodlight range specifically designed for corrosive atmospheres. Constructed from marine grade stainless steel, the range is fitted with internal control gear and can be quickly relamped by removing the toughened glass front cover via the specially designed front cover clamps.

There is the option of a remote gear box for all HPS and metal halide lamp models although for certain models this is standard. Other options include M25 cable entries, auxillary tungsten halogen lamps, looping, narrow beam reflector and timed cut-out ignitor.

For high vibration applications there is the option of a strengthened mounting arrangement for added safety.

ATEX Category 3 (Zone 2) hazardous area versions are available.





2. Maxinex and Micronex

Asymmetric Floodlight





The Maxinex and Micronex are a range of two industrial asymmetric floodlights, one for 70W double ended High Pressure Sodium or Metal Halide lamps and the larger for 150W to 400W tubular High Pressure Sodium or Metal Halide lamps.

The asymmetric reflector design enables the light beam to be thrown forward for long distance lighting and concurrently assuring that the lighting below the pole of mounting location is also effectively lit without having to tilt the floodlight at high aiming angles. Both luminaires share a high IP66/67 rating.

The compact design features of these floodlights ensures reduced weight and low windage. This helps reduce installation costs and it allows lighter mounting systems.

Both luminaires have hinged front covers access via front cover assembly secured by stainless steel screws for easy access for lamp maintenance.





3. 503 Floodlight

Aluminium Luminaire





The 503 is a high power floodlight designed for the most arduous environments. It is suitable for 600W and 1000W hps lamps and 1000W Tungsten Halogen lamps and a 2000W MH lamp.

The 503 has a robust, corrosion resistant, low pressure die cast LM6 aluminium alloy enclosure (a PTFE protective coating can be applied if required) with a toughened glass window. For HPS models, the control gear is housed in a control gear box mounted on the leg.

The use of the 503 will give extremely high levels of illumination from a small number of floodlights, greatly reducing installation and maintenance costs.

Zone 2 Ex N versions are available





4. Dexlux Floodlight

Stainless Steel Luminaire





The Dexlux floodlight range is constructed from marine grade stainless steel with toughened glass cover and is designed for use in hostile and corrosive environments. ingress protection(IP) rating to IP66/67

The floodlight range are available with a range of tungsten halogen lamp options, 200W, 500W & 1000W.

Installation and maintainance of lamps can be easily obtained via the front cover and quick release stainless steel clips.

In addition to being compact and lightweight, there are a number of additional options such as an anti-vibration damper assembly, anti-glare shield and wire guard making the Dexlux excellent for use in harsh environment.





5. 458 EPDM Floollight



The 458 is high wattage, weatherproof, robust EPDM floodlight is versitile in its mounting suitability as this is available in a base-mounted version (/B) and pole-mounted option (/P). The range has excellent vibration resistance making it ideal for use in hostile marine environments.

The 458 is manufactured from EPDM rubber with a heavy duty borosilicate front glass and wire guard for maximum protection. The 458 is suitable for GLS and hps lamps with maximum continuous operating temperature of +30°C.

Models with GLS lamps can operate at an ambient temperature as low as -40°C. A universal control gear box is required for models with hps lamps.

Available in 150W HPS, 250W HPS and 300W GLS lamp options.





6. 487 EPDM Floodlight



The 487 compact, robust and weatherproof EPDM floodlight is versitile in its mounting suitability as this is available in a base-mounted version (/B) and pole-mounted option (/P). The range has excellent vibration resistance making it ideal for use in hostile marine environments.

Manufactured from EPDM rubber, the 487 has a toughened front glass and wire guard for maximum protection. Ingress Protection of IP54 (with wire guard) and IP67 version available (silicone sealing ring fitted to glass. No guard fitted) with the suffix of /IP67 to the partcode.

The 487 is suitable for GLS lamps up to 200W wtih a recommended maximum continuous operating ambient temperature of +30°C and a minimum temperature of -40°C.





7. Solas LED Floodlight

Emergency LED Floodlight





The Solas is a new generation of LED lighting ideal for installations where area lighting is required but traditional re-lamping can be difficult.

The product uses ultra bright white LEDs to provide the illumination required for task and working areas. Output is equivalent with a 70W HPS lamp.

The luminaires rugged construction of cast aluminium and toughened flat glass is suitable for the most environmentally challenging areas, offshore and marine environments.



Solas is available as an emergency version which is operable in either maintained mode or non-maintained mode. This gives the flexibility of using the luminaire for both normal lighting and in emergency situations. A remote inhibition facility is also available. The LEDs operate at 100% lumen output when the power fails for a duration of 90 minutes. Battery recharge time is 24 hours. They also provide instant on lighting from both mains or battery mode.









Technical Data

0.Chalmit Lighting Master CAT 201101XX 02.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.



국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 비방폭 일반산업형 Bulkhead 라인업 소개



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 조명가운데 비방폭 일반산업형의  Chalmit Bulkhead 라인업에 대해 살펴보도록 하겠습니다.



1. Chalmit Lighting Nexxus Heavy Duty Bulkhead

Industrial Type





The industrial version of the Nexxus bulkhead luminaire is suitable for HID incandescent and compact fluorescent lamps. Its construction consists of a black-painted marine grade die cast aluminium LM6 alloy body with a heat resistant prismatic glass cover, silicone rubber sealing gasket and stainless steel fixings.

The Nexxus bulkhead offers a compact and versatile solution in many applications especially those with high levels of dirt and /or moisture.

They are simple to install, easy to maintain and durable.  The wide range of light sources and wiring options also makes the Nexxus a very versitile luminaire for many industrial applications.

ATEX Category 3 (Zone 2) hazardous area versions are available.









2. Chalmit Lighting Nexled LED Bulkhead

Industrial Type

The NexLED bulkhead luminaire utilises high output 1 Watt light emitting diodes (LED's) that provide a white, instant light that is highly visible.



Bulkheads offer a compact and versatile solution for many applications, especially in exposed conditions with high levels of dust and moisture.



 The enclosure is corrosion resistant marine grade aluminium with a toughened glass cover, silicone rubber sealing gasket and stainless steel fixings. The product can be fitted with either two or eight low power LED's making the NexLED an efficient luminaire for both mains and emergency mode operation from the backup battery. The use of LED technology means that light output in emergency mode is identical to mains operation, lamps switch off for one second when the mains fail then restart to indicate battery operation.


The bulkhead is simple to install, easy to maintain and durable. The LED's are more efficient than incandescent and most tungsten halogen lights and operate for up to 80000 hours eliminating relamping in many applications. This new lamp technology emits no heat forward, no ultra violet light, is mercury free and is not susceptible to vibration. Suitable for a wide range of ambient temperatures from -45°C to +55°C with light output unaffected by low temperatures. Where emergency lighting is required in ambient temperatures below -5°C the NexLED is available with a heated battery compartment which maintains the batteries at the required temperature to sustain emergency duration.









Technical Data (Datasheet)

Nexxus Heavy Duty Bulkhead Industrial.pdf

Nexled LED Bulkhead Industrial.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.

국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 방폭위험지역 Zone2에 적용되는 Bulkhead 라인업 소개



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 방폭조명가운데 위험지역 Zone2에 적용가능한 Chalmit Bulkhead 라인업에 대해 살펴보고자 합니다.









1. Chalmit Lighting Nexxus Bulkhead

Ex n Luminaire

Zone 2 Application
ATEX CATEGORY 3








The Nexxus bulkhead luminaire is suitable for a wide range of discharge lamps, incandescent lamps and also compact fluorescent lamps.

The explosion protection is Ex nR utilising a restricted breathing enclosure. Bulkheads offer a compact and versatile solution in many applications especially those where conditions are exposed and have high levels of dirt and moisture. The enclosure is corrosion resistant aluminium with a heat resistant glass cover, silicone rubber sealing gasket and stainless steel fixings.

The bulkhead is simple to install, easy to maintain and durable. The wide range of light sources and wiring options makes the Nexxus a very versatile luminaire. Suitable for a wide range of ambient temperatures, -45°C to +55°C, dependant on lamp type and wattage.

New reflector system giving 20% increase in photometric performance.











2. Chalmit Lighting Nexxus II LED Bulkhead

Ex nR tb Luminaire

Zone 2
ATEX CATEGORY 3





The Nexxus II bulkhead luminaire is suitable for Zone 2 applications incorporating an array of light emitting diodes(LEDs) providing an instant white light that is highly visible.

The explosion protection is Ex nR tb utilising a restricted breathing enclosure. Bulkheads offer a compact and versatile solution in many applications especially those where conditions are exposed and have high levels of dirt and moisture. The enclosure is corrosion resistant aluminium with a heat resistant glass cover, silicone rubber sealing gasket and stainless steel fixings.

The bulkhead is a very low power consumption reulting in ultra long lifespan where relamping is not required. The Nexxus a very versatile luminaire that is easy to install with a high corrosion resistance, suitable for a wide range of ambient temperatures, -45°C to +55°C.

New reflector system giving 20% increase in photometric performance.











Technical Data (Datasheet)

Nexxus Bulkhead Hazardous.pdf

Nexxus II LED Bulkhead Hazardous.pdf



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.



국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 방폭위험지역 Zone1에 적용되는 Bulkhead 라인업 소개



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 방폭조명가운데 위험지역 Zone1에 적용가능한 Bulkhead 라인업에 대해 살펴보고자 합니다.









1. Chalmit Lighting NexLED LED Bulkhead

Ex e Luminaire

Zone 1
ATEX CATEGORY 2




The NexLED bulkhead luminaire utilises high output 1 Watt light emitting diodes (LED's) that provide a white, instant light that is highly visible.

Suitable for Zone 1, the protection being flameproof increased safety. Bulkheads offer a compact and versatile solution in many applications especially those where conditions are exposed and have high levels of dust and moisture. The enclosure is corrosion resistant marine grade aluminium with a toughened glass cover, silicone rubber sealing gasket and stainless steel fixings.

The product can be fitted with either 2 or 8 LED's and offers a very low power consumption product well suited to UPS systems. The bulkhead is simple to install, easy to maintain and durable.

The LED's are more efficient than incandescent and most tungsten halogen lights and operate for over 60000 hours eliminating relamping in many applications. This new lamp technology emits no heat or ultra violet light and is mercury free.

Suitable for a wide range of ambient temperatures from -45ºC to +55ºC with light output not affected by low temperatures.





2. Chalmit Lighting NexLED Emergency LED Bulkhead
Ex e ib im Luminaire

Zone 1
ATEX CATEGORY 2



The NexLED bulkhead luminaire utilises high output 1 Watt light emitting diodes (LED's) that provide a white, instant light that is highly visible.





Bulkheads offer a compact and versatile solution for many applications, escpecially in exposed conditions with high levels of dust and moisture. The enclosure is corrosion resistant marine grade aluminium with a toughened glass cover, silicone rubber sealing gasket and stainless steel fixings. The product can be fitted with either two or eight low power LED's making the NexLED an efficient luminaire for both mains and emergency modeo operating from the backup battery. The use of LED technology means that light output in emergency mode is identical to mains operation, lamps switch off for one second when the mains fail then restart to indicate battery operation.



The bulkhead is simple to install, easy to maintain and durable. The LED's are more efficient than incandescent and most tungsten halogen lights and operate for up to 80000 hours eliminating relamping in many applicaitons. This new lamp technology emits no heat forward, no ultra violet light, is mercury free and is not susceptible to vibration. Suitable for a wide range of ambient temperatures from -45℃ to +55℃ with light output unaffected by low temperatures. Where emergency lighting is required in ambient temperatures below -5℃ the NexLED is avaible with a heated battery compartment which maintains the batteries at the required temperature to sustain emergency duration.





3. Chalmit Lighting Nevis Bulkhead
Ex d e Luminaire

Zone 1
ATEX CATEGORY 2





The Nevis bulkhead is designed for applications where a low profile robust luminaire is required. It is suitable for mounting on handrails and walls as well as ceilings and in restricted dirty places.

The ATEX rated bulkhead suitable for Zone 1 and Zone 21 applications is made from corrosion resistant aluminium alloy and toughened boro-silicate glass using stainless steel fastenings. It has an IP66/67 rating making it ideally suited to use in hazardous area environments

The luminaire is suitable for high pressure discharge lamps up to 70W HPS and 125W mercury vapour and also compact fluorescent lamps up to 26W, 200W GLS and 55W QL induction lamps. These give an efficient all around light distribution.

The large side mounted increased safety terminal chamber eliminates the need for flameproof glands and allows for flush mounting with easy cable access.





4. Chalmit Lighting Nevis LED Bulkhead

Ex d e Luminaire

Zone 1
ATEX CATEGORY 2








The Nevis LED bulkhead is an ATEX rated bulkhead suitable for Zone 1 and Zone 21 applications.  The ultra bright LEDs will deliver an instant white light which has a longer life with light output & efficiency equivalent to a 70W HPS, making this a very cost effective luminaire.

The Nevis LED has these key benefits:

·          Long Operational Lifespan = 60,000 hours
·          Reduced Power Consumption = Cost effective
·          Operational at Low Temperatures -55°C



The Nevis has a side mounted increased safety terminal chamber, this eliminates the need for flameproof glands and allows for flush mounting with easy cable access. Designed for low profile applications, the bulkhead can be mounted on walls, handrails and ceilings - ideal for walkways or restricted height areas making the Nevis suitable for extreme environmental conditions.











Technical Data (Datasheet)

Nexled Bulkhead Hazardous.pdf

Nexled Emergency Hazardous.pdf

Nevis Hazardous.pdf

Nevis LED Hazardous.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.



국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 Zone2 Wellglass 라인업 소개



 안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 방폭조명 가운데 위험지역 Zone2에 적용되는 Wellgalss 제품군에 대해 살펴보도록 하겠습니다.







1. Chalmit Lighting Eclipse II Well-Glass

Ex n Luminaire / ATEX Category 3



The Eclipse II is a Zone 2 well-glass for high pressure discharge lamps of up to 400W.

It has a lightweight corrosion resistant aluminium body, heat resistant glass and stainless steel fasteners. It has been tested to IP66 and is suitable for use in harsh environments. The protection is Ex nA nR, incorporating a restricted breathing lamp chamber and a non-sparking control gear and terminal housing. This design removes the need for special cable or cable glands. The lamp glass has a screwed thread for quick access.



The control gear housing hinges on the mounting and termination cover and is held in position by a single screw barrel nut. The single screw barrel nut permits easy access and closure of the luminaire during installation and should maintenance be required. There is a range of wall, surface and stanchion mountings which may be integrated in the design. An enclosed reflector for highbay applications is also available. A range of external reflectors is available to direct light efficiently to where it is required, please refer to the product datasheet for further details.





2. Chalmit Lighting Eclipse Junior Well-Glass

Ex n Luminaire / ATEX Category 3



The Eclipse Junior is a Zone 2 well-glass luminaire suitable for high pressure discharge lamps up to 70W and GLS lamps up to 150W.

It has a lightweight corrosion resistant aluminium body, heat resistant glass cover with stainless steel fasteners. The Eclipse Junior is tested to IP66 and is suitable for use in harsh and hazardous environments.

The protection method is Ex nAR incorporating a restricted breathing lamp chamber and an unrestricted control gear and terminal housing. This removes the need for special cable or glands. The lamp-glass has a screwed thread for quick access. The main enclosure containing the control gear hinges on the mounting part but is not fastened to it. This allows ready access to the terminals and the easy removal of the control gear and lamp enclosure if maintenance is needed.

There is a range of wall, surface and stanchion mountings integrated into the designs, please refer to the datasheet for further details. This small well-glass offers a compact lighting solution for use where all round lighting is needed in positions having limited space and access.









Technical Data (Datasheet)

Eclipse II Hazardous.pdf

Eclipse Junior Hazardous.pdf





Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.













국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 Zone1 Wellglass 라인업 소개



 안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 방폭조명 가운데 위험지역 Zone1에 적용가능한 Wellgalss 제품군에 대해 살펴보도록 하겠습니다.









1. Chalmit Lighting 216 Well-Glass

Ex d e Luminaire / ATEX Category 2

The 216 well-glass luminaire is ideal for use where a compact, robust and efficient source of localised lighting is needed. Designed for use in Zone 1 and 21 hazardous areas, the range accommodates high pressure discharge lamps up to 80W Mercury Vapour, 70W HPS, incandescent lamps up to 200W and compact fluorescent lamps up to 26W.

The 216 is made from corrosion resistant aluminium alloy and toughened boro-silicate glass using stainless steel fastenings and has an IP66/67 rating.

The luminaire features a large side mounted increased safety terminal chamber eliminating the need for flame-proof cable glands and allowing flush mounting.





2. Chalmit Lighting 238 Well-Glass

Ex d e Luminaire / ATEC Category 2





The 238 well-glass luminaire is ideal for use where a compact and powerful source of area lighting is needed. The hazardous area range accommodates high pressure discharge lamps up to 250W and incandescent GLS lamps up to 300W.

External reflectors are available to provide light control for efficient low and medium height operation.

The luminaire is made from corrosion resistant aluminium alloy and toughened boro-silicate glass using stainless steel fastenings. It has an IP66/67 rating.

The luminaire features a large side mounted increased safety terminal chamber eliminating the need for flame-proof cable glands and allowing flush mounting. The 238 is suitable for a wide range of high and low temperature applications.







3. Chalmit Lighting 261 Well-Glass

Ex d Luminaire / ATEX Category 2



The 261 well-glass is a high light out luminaire ideally suitable for demanding and hazardous environments. It accommodates high pressure discharge lamps up to 400W and also incandescent lamps up to 500W.

External reflectors are available making the 261 suitable for medium and high bay applications.

The luminaire is made from corrosion resistant aluminium alloy and toughened boro-silicate glass using stainless steel fastenings and has an IP66/67 rating. It features a large side mounted increased safety terminal chamber eliminating the need for flameproof cable glands and allowing for flush mounting.

Versions of the 261 are available for low temperature operation at -40ºC on certain lamp ranges.










Technical Data (Datasheet)

216 Hazardous.pdf

238 Hazardous.pdf

261 Hazardous.pdf



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.











국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Chalmit 샬밋 Industrial Well Glass 라인업 소개



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 샬밋 비방폭형 일반산업형 조명가운데 Well Glass 타입과 그 종류에 대해 살펴보도록 하겠습니다.



1. Chalmit Eclipse II Well-Glass Highbay Luminaire



The Eclipse II is a robust wellglass/highbay luminaire suitable for high pressure discharge lamps of up to 400W.

It has a lightweight corrosion resistant cast aluminium body and heat resistant glass construction complete with stainless steel fasteners. It has been tested to IP65 and is suitable for use in harsh industrial environments.




The lamp glass has a screwed thread for quick access. The control gear housing hinges on the mounting and termination cover and is held in position by a single screw barrel nut. The single screw barrel nut permits easy access and closure of the luminaire during installation,should maintenance be required.

These is a range of wall, surface and stanchion mountings which may be integrated into the design. An enclosed reflector for highbay applications is also available. A range of external reflectors is available to direct ight efficiently to where it is required.

A Zone 2 hazardous area version is available.






2.Chalmit Eclipse Junior Well-Glass Highbay Luminaire



The Eclipse Junior is a robust, corrosion resistant wellglass/highbay luminaire suitable for discharge lamps up to 80W and GLS lamps up to 150W which offer a compact lighting solution where all round lighting is needed in positions having limited space and access.

The luminaire has a lightweight die cast aluminium alloy hinged body and lid with a lamp glass which is unscrewed for quick access. The main enclosure containing the control gear hinges on the mounting part of the Eclips Junior but is not fastened to it, allowing ready access to the terminals and easy removal of the control gear and lamp enclosure when maintenance is required.



Direct ceiling-mounted is standard but stanchion-mounted and wall-mounted versions are available. The Eclipse Junior is ideally suited for use in harsh industrial environments.

ATEX Category 3 ( Zone 2) hazardous area version is available.









Technical Data (Datasheet)

Eclipse II Industrial.pdf

Eclipse Junior Industrial.pdf



Notice : Specification are subject to change without notice.

주의사항 : 소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문대리점을 통해 진행해 주시기 바랍니다.









국내 기술지원 및 구매상담

CUSTOMER SUCCESS IDK

CS CENTER 010.5353.9110

deric@jadongwha.com

www.tiatip.com

저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절


BLOG main image
by TIATIP

카테고리

TI Story (957)
TIA (92)
TIP (194)
TIEx (601)
TIS (36)
TIO (23)
TiNoTe (10)
The OtherS (1)
