KOPEX-EX Conduit System, Fitting Instructions for Non-Metallic Braided EXBQ and EXBB Conduit 설치가이드



안녕하세요 TIATIP 입니다.



오늘 이 시간에는 Ex'e'타입의 Conduit System과 관련하여, EXBQ시리즈의 Fitting과 EXBB Series의 Conduit의 설치가이드를 전해드립니다.











Thomas&Betts

KOPEX-Ex Conduit Systems

EXBB

EXBQ, EXBQM, EXBQA





Over Braided Conduit

EXBB Conduit Series









Straight Male Conduit Fitting

EXBQ Conduit Gland/Fitting Series

EXBQM & EXBQA Series













Wrap sellotape around conduit and cut to length required. Apply the “nut out” over the braiding before removing tape.









Remove tape and pull back braided sheath. Apply “nut in” so that approximately five convolutions protrude.







Apply seal with chamfered edge towards the “nut in” three corregations in from the end of the conduit.







Loosely assemble body into the “nut in.”
If using with a plain hole, fully tighten nut into body to secure gland on conduit.
If using with a threaded entry, leave nut loose to allow gland to freely rotate
about the conduit. Screw body into entry, then fully tighten nut.







Position braiding over steps of “nut in” and secure with “nut out” ensuring braid is trapped between the nuts.





Special Conditions for Safe Use:
When the gland is used for increased safety or dust protection, the entry of the enclosure and the female thread of the gland is to be sealed (in accordance with IEC60079-14) in order to maintain the ingress protection rating of the associated enclosure.







CAT Number

EXBB,EXBQ,EXBQM,EXBQA,EXBB0310, EXBB0330, EXBB0350,EXBB0410, EXBB0430, EXBB0450,EXBB0510, EXB0530, EXBB0550,EXBB0610, EXBB0630, EXBB0650,EXBB0710, EXBB0730, EXB0750,EXB0810, EXBB0830, EXBB0850,EXBQM0304, EXBQM0404, EXBQM0505, EXBQM0606, EXBQM0707, EXBQM0808,EXBQA0304, EXBQA0404, EXBQA0505, EXBQA0606, EXBQA0707, EXBQA0808,EXBQA0305











Installation Guide



http://youtu.be/sLYP8cZvxZY







Technical Data



CAT02.06 KopexEx Hazardous Location Conduit Systems.pdf

CAT21.Adaptaflex and KopexEx.pdf

CAT26.02 KopexEx Stainless Steel Conduit Systems.pdf

DTS KOPEX Hazardous Area CAT02.pdf

DTS KOPEX Installation Guide.pdf

EXB EXBB Conduit Spec 20110522.pdf

EXBQ Fittings Spec 20120409.pdf





















내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com







저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

KOPEX-EX Conduit System, Fitting Instructions for Non-Metallic EXPQEXB Conduit 설치가이드



안녕하세요 TIATIP 입니다.



오늘 이 시간에는 Ex'e'타입의 Conduit System과 관련하여, EXPQ시리즈의 Fitting과 EXB Series의 Conduit의 설치가이드를 전해드립니다.







Thomas&Betts

KOPEX-Ex Conduit Systems

EXB

EXPQ, EXPQM, EXPQA



Anti-Static Conduit, EXB Conduit Series











Straight Male Conduit Fitting

EXPQ Conduit Gland/Fitting Series

EXPQM & EXPQA Series













Apply nut and seal over conduit, ensuring chamfered edge of seal is facing towards nut. Seal to be positioned three corrugations in from the end of the conduit.







If using with plain hole, fully tighten nut onto body to secure gland onto conduit.




If using with threaded entry, leave nut loose to allow gland to freely rotate about the conduit. Screw body into entry, then fully tighten nut to complete installation.











Installation Guide



http://youtu.be/duJ6vW-TV4g





CAT Number

EXB,EXPQ,EXPQM,EXPQA, EXB0310, EXB0330, EXB0350,EXB0410, EXB0430, EXB0450,EXB0510, EXB0530, EXB0550,EXB0610, EXB0630, EXB0650,EXB0710, EXB0730, EXB0750,EXB0810, EXB0830, EXB0850,EXPQM0304, EXPQM0404, EXPQM0505, EXPQM0606, EXPQM0707, EXPQM0808,EXPQA0304, EXPQA0404, EXPQA0505, EXPQA0606, EXPQA0707, EXPQA0808,EXPQA0305











Technical Data

CAT02.06 KopexEx Hazardous Location Conduit Systems.pdf

CAT21.Adaptaflex and KopexEx.pdf

CAT26.02 KopexEx Stainless Steel Conduit Systems.pdf

DTS KOPEX Hazardous Area CAT02.pdf

EXB EXBB Conduit Spec 20110522.pdf

EXPQ Conduit Spec 20110121.pdf

















내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com







저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

T&B KOPEX-EX DTS UL XP-Flexible Coupling 사양소개



안녕하세요 TIATIP 입니다.



오늘 이 시간에는 Thomas&Betts 의 UL XP-Flexible Coupling 에 대해 살펴보도록 하겠습니다.







Thomas&Betts

KOPEX-EX DTS

UL XP-Flexible Coupling For Hazardous Areas and Applications

UL XP-Flexible Coupling For use in potentially explosive atmospheres





KOPEX-EX

XP Flex Explosion Proof Coupling

A range of explosion proof flexible coupling for hazardous areas (UL)







Technical Data

DTS KOPEX Hazardous Area CAT01.pdf

DTS KOPEX Hazardous Area CAT02.pdf













Catalogue No.

ThomasandBetts,Thomas&Betts,TnB,T&B,KOPEX,KOPEX-EX,UL XP, Flexible Coupling, DTS,XPLFL318,XPLFL236,XPLFL224,XPLFL218,XPLFL215,XPLFL212,

XPLFL124,XPLFL118,XPLFL115,XPLFL112,XPLFL110,XPLFL18,XPLFL16













내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com





저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

KOPEX-EX DTS Ex d Metallic Conduit System 사양소개



안녕하세요 TIATIP 입니다.



오늘 이 시간에는 Thomas&Betts 브랜드 가운데, 방폭컨듀이트시스템(Ex Conduit System)분야에서 탁월한 사양과 검증을 갖추고 있는 KOPEX-EX DTS Ex d Metallic Conduit System 을 소개드립니다.





Thomas&Betts

T&B (TnB) KOPEX-EX DTS

Ex d Metallic Systems For Hazardous Areas and Applications

Ex d Metallic Systems for use in potentially explosive atmosphers









1. KOPEX-EX DTS Ex d Conduit Glands

A range of conduit fittings and stopping glands for Exd applications.





(1) Group I Flameproof Gland

Constructed from either brass or stainless steel, the Group I Flameproof Gland is a high quality, high specification product, ideal for Ex I & II 2 GD gas and dust, Exde IIC and Exe II applications.





(2) Group I Flameproof 90˚ Elbow

Constructed from either brass or stainless steel, with a nylon seal and epoxy resin, the Group I 90 degree flameproof gland is a high quality, high specification product, ideal for Ex I & II 2 GD gas and dust, Exde IIC and Exe II applications.







(3) Group I Universal Flameproof Gland

Constructed from either brass or stainless steel, with a nylon seal and epoxy resin, the Group I universal flameproof gland is a high quality, high specification product, ideal for Ex I & II 2 GD gas and dust, Exde IIC and Exe II applications.





(4) Group II Flameproof Gland

Constructed from either brass or stainless steel, with a nylon seal and epoxy resin, the Group II flameproof gland is a high quality, high specification product, ideal for Ex II 2 GD gas and dust, Exd IIC and Exe II applications.









2. KOPEX-EX DTS Metallic Liquid Tight Conduits

 A range of liquid tight conduits for use in hazardous areas







(1) Oil Resistant (Galvanised Steel Type)

Robust conduit made from galvanised core with a coating for increased protection from dilute acids, alkalis, and hydro-carbon products.





(2) High Temperature (Galvanised Steel Type)

Conduit for high temperature applications made from Galvanised core with a chemical resistant coating.







(3) Low Fire Hazard (Galvanised Steel Type)

Is a low fire hazard conduit which is fully compliant with London Underground, and MOD specifications. Conduit is available in galvanised core with a coating that offers low toxicity and zero halogen.





(4) High Temperature Highly Flexible (Galvanised Steel Type)

Conduit for high temperature applications, where a high degree of flexibility is required. Made from galvanised core with a thermaplastic rubber coating.







(5) Low Fire Hazard with EMC Protection (Galvanised Steel Type)

Is a low fire hazard conduit which is fully compliant with London Underground, and MOD specifications. Conduit is available in Galvanised steel core with a coating that offers low toxicity and zero halogen.





(6) Oil Resistant (Stainless Steel Type)

Robust conduit made from Stainless Steel 316 core with a coating for increased protection from dilute acids, alkalis, and hydro-carbon products.





(7) Low Fire Hazard (Stainless Steel Type)

Is a low fire hazard conduit which is fully compliant with London Underground, and MOD specifications. Conduit is available in Stainless steel core with a coating that offers low toxicity and zero halogen.





(8) High Temperature (Stainless Steel Type)

Conduit for high temperature applications made from Stainless core with a chemical resistant coating.





(9) High Temperature Highly Flexible (Stainless Steel Type)

Conduit for high temperature applications, where a high degree of flexibility is required. Made from Stainless steel core with a thermaplastic rubber coating.





3. KOPEX-EX DTS Ex d Metallic System Application



설치동영상 링크자료 : http://youtu.be/Kj7mo5jiarw

















KOPEX-EX DTS Catalog Number



TnB, T&B, Thomas&Betts, KOPEX-EX, DTS, HAM0304G1,HAMM0304G1,HAMS0304G1,HAM0404G1,HAMM0404G1,HAMS0404G1,

HAM0505G1,HAMM0505G1,HAMS0505G1,HAM0606G1,HAMM0606G1,HAMS0606G1,

HAM0707G1,HAMM0707G1,HAMS0707G1,HAM0808G1,HAMM0808G1,HAMS0808G1,

HAM0909G1,HAMM0909G1,HAMS0909G1,HAA0304G1,HAAM0304G1,HAAS0304G1,

HAA0404G1,HAAM0404G1,HAAS0404G1,HAA0505G1,HAAM0505G1,HAAS0505G1,

HAA0606G1,HAAM0606G1,HAAS0606G1,HAA0707G1,HAAM0707G1HAAS0707G1,

HAA0808G1,HAAM0808G1,HAAS0808G1,HAA0909G1,HAAM0909G1,HAAS0909G1,

HAM0304E,HAMM0304E,HAM0404E,HAMM0404E,HAM0505E,HAMM0505E,

HAM0606E,HAMM0606E,HAM0707E,HAMM0707E,HAM0808E,HAMM0808E,

HAM0909E,HAMM0909E,HAA0304E,HAAM0304E,HAA0404E,HAAM0404E,

HAA0505E,HAAM0505E,HAA0606E,HAAM0606E,HAA0707E,HAAM0707E,

HAA0808E,HAAM0808E,HAA0909E,HAAM0909E,HAM0304U,HAMM0304U,

HAMS0304U,HAM0404U,HAMM0404U,HAMS0404U,HAM0505U,HAMM0505U,

HAMS0505U,HAM0606U,HAMM0606U,HAMS0606U,HAM0707U,HAMM0707U,

HAMS0707U,HAM0808U,HAMM0808U,HAMS0808U,HAM0909U,HAMM0909U,

HAMS0909U,HAA0304U,HAAM0304U,HAAS0304U,HAA0404U,HAAM0404U,

HAAS0404U,HAA0505U,HAAM0505U,HAAS0505U,HAA0606U,HAAM0606U,

HAAS0606U,HAA0707U,HAAM0707U,HAAS0707U,HAA0808U,HAAM0808U,

HAAS0808U,HAA0909U,HAAM0909U,HAAS0909U,HAM0304,HAM0404,

HAM0505,HAM0606,HAM0707,HAM0808,HAM0909,HAMM0304,HAMM0404,

HAMM0505,HAMM0606,HAMM0707,HAMM0808,HAMM0909,HAMS0404,

HAMS0505,HAMS0606,HAMS0707,HAMS0808,HAMS0909,HAA0304,

HAA0404,HAA0505,HAA0606,HAA0707,HAA0808,HAA0909,HAAM0304,

HAAM0404,HAAM0505,HAAM0606,HAAM0707,HAAM0808,HAAM0909,

HAAS0404,HAAS0505,HAAS0606,HAAS0707,HAAS0808,HAAS0909,

EXLB0110,EXLB0130,EXLB0210,EXLB0230,EXLB0310,EXLB0330,

EXLB0350,EXLB0410,EXLB0430,EXLB0450,EXLB0510,EXLB0530,

EXLB0550,EXLB0610,EXLB0630,EXLB0710,EXLB0720,EXLB0810,

EXLB0820,EXLB0910,EXLB0920,EXLLH0330,EXLLH0730,EXLLH0310,

EXLLH0410,EXLLH0430,EXLLH0510,EXLL0530,EXLLH0610,EXLLH0630,

EXLLH0710,EXLH0310,EXLH0330,EXLH0410,EXLH0430EXLH0510,

EXLH0530,EXLH0610,EXLH0630,EXLH0710,EXLH0730,EXLT0310,

EXLT0312,EXLT0330,EXLT0410,EXLT0430,EXLT0510,EXLT0530,

EXLT0610,EXLT0620,EXLT0710,EXLT0720,EXLT0810,EXLT0820,

EXLT0910,EXLT0920,EXLT0930,EXLHC0310,EXLHC0330,EXLHC0410,

EXLHC0430,EXLHC0510,EXLHC0530,EXLHC0610,EXLHC0620,EXLHC0710,

EXLHC0720,EXLHC0810,EXLHC0820,EXLHC0910,EXLHC0920,EXBBT0310,

EXBBT0330,EXBBT0410,EXBBT0430,EXBBT0530,EXBBT0610,EXBBT0630,

EXBBT0710,EXBBT0730,EXBBT0810,EXBBT0820,EXBBT0910,EXSB0910,

EXSB0830,EXSB0810,EXSB0730,EXSB070,EXSB0630,EXSB060,

EXSB0530,EXSB050,EXSB0430,EXSB041,EXSB0330,EXSB030,

EXST0310,EXST0330,EXST0410,EXST0430,EXST0510,EXST0530,

EXST0610,EXST0620,EXST0710,EXST0720,EXST0810,EXST0820,

EXST0910,EXST0920,EXSLLH0630,EXSLLH0430,EXSLLH0330,EXSLLH0710,

EXSH0310,EXSH0330,EXSH0410,EXSH0430,EXSH0510,EXSH0530,

EXSH0610,EXSH0620,EXSH0710,EXSH0720,EXSH0810,EXSH0820,

EXSH0910,EXSH0920,EXSLLH0310,EXSLLH0410,EXSLLH0510,EXSLLH0530,

EXSLLH0610,EXSHC0310,EXSHC0330,EXSHC0410,EXSHC0430,EXSHC0510,

EXSHC0530,EXSHC0610,EXSHC0620,EXSHC0710,EXSHC0720,EXSHC0810,

EXSHC0820,EXSHC0910,EXSHC0920,













Technical Data

DTS KOPEX Hazardous Area CAT01.pdf

DTS KOPEX Hazardous Area CAT02.pdf

CAT02.06 KopexEx Hazardous Location Conduit Systems.pdf

CAT26.02 KopexEx Stainless Steel Conduit Systems.pdf

















내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com







저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Thomas&Betts(T&B,TnB) EXB/EXBB Conduit 사양소개



안녕하세요 TIATIP 입니다.



오늘 이 시간에는

Thomas&Betts(T&B,TnB) EXB/EXBB Conduit 사양에 대해 살펴보도록 하겠습니다.











Thomas&Betts Corporation

Kopex-Ex

EXBConduit

EXBB Conduit
Exe Antistatic Conduit













Description :

Standard Weight Antistatic Conduit manufactured from nylon 12.Available with Stainless Steel 316 braiding for additional abrasion resistance and EMC Screening, -20°C to +80°C



Material :

Polyamide 12

Stainless Steel 316







Intended Use :

An electrically discharging cable protection system.

This system protects electrical cables and wires from mechanicaldamage and UV radiation

Exe Zones 1, 2, 21 & 22 Gas Groups IIA IIB and IIC



Compatible Fittings :

IP66 -EXPQ* for unbraided EXB Conduit

IP66 -EXBQ* for Stainless Steel Braided EXBB Conduit



Approvals :

ATEX directive 94/9/EC (ATEX 95) to standardsIEC 60079-0, IEC 60079-7, EN60079-0, EN60079-7, IEC51241-0 IEC51241-1 EN51241-0 & EN51241-1.



Certifications :

BASEEFA ATEX08.0003X

IECEx BAS08.0001X







EXBQM / EXPQA Range
Nylon conduit fi ttings



EXB - Standard Weight











EXB With EXPQ* Fitting

Installation Guide

http://youtu.be/duJ6vW-TV4g









EXBB - 316 Overbraided





EXBB With EXBQ* Fitting

Installation Guide

http://youtu.be/sLYP8cZvxZY







Thomas&Betts

DTS KOPEX Hazardous Area











Catalog Numbering

EXB0310, EXB0330, EXB0350,EXB0410, EXB0430, EXB0450,EXB0510, EXB0530, EXB0550,EXB0610, EXB0630, EXB0650,EXB0710, EXB0730, EXB0750,EXB0810, EXB0830, EXB0850,EXBB, EXBB0310, EXBB0330, EXBB0350,EXBB0410, EXBB0430, EXBB0450,EXBB0510, EXBB0530, EXBB0550,EXBB0610, EXBB0630, EXBB0650, EXBB0710, EXBB0730, EXBB0750,EXBB0810, EXBB0830, EXBB0850,

EXPQ,EXPQM, EXPQM0304, EXPQM0404, EXPQM0505, EXPQM0606, EXPQM0707, EXPQM0808, EXPQA, EXPQA0304, EXPQA0404, EXPQA0505, EXPQA0606, EXPQA0707, EXPQA0808,

EXBQ,EXBQM,EXBQM0304,EXBQM0404,EXBQM0505,EXBQM0606,

EXBQM0707, EXBQM0808, EXBQA,EXBQA0304,EXBQA0404,EXBQA0505,EXBQA0606,EXBQA0707,

EXBQA0808













Technical Data

DTS KOPEX Hazardous Area CAT01.pdf

DTS KOPEX Hazardous Area CAT02.pdf

DTS KOPEX Hazardous Area Old CAT.pdf













내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com





저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

호크 Hawke CSB 656N Cable Gland 기술사양



안녕하세요 TIATIP 입니다.



Hawke Conduit System 의 CSB 656N Cable Gland 에 대해 살펴보도록 하겠습니다.







Hawke

Cable Glands

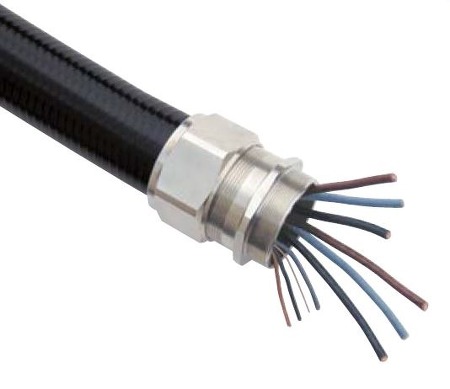

CSB 656N Cable Gland

Group II Hazardous Area

Flameproof Exd / Increased Safety Exe / Dust Extb /

Dual Certified ATEX - IECEx















Application

Outdoor or indoor use.
For use with conduit incorporating individual insulated conductors or for particular use with:-
a) Cables that are not effectively filled, compact and/or circular, have tape bedding or have hygroscopic fillers.
b) Cables that exhibit 'COLD FLOW' characteristics.
c) Enclosures containing an ignition source in gas group IIC areas or containing an ignition source in a Zone 1 area and exceeding 2 litres in volume.











Features

Provides a barrier seal between the individual insulated cores within the cable and prevents entry of the products of an explosion into the cable or conduit.
Seals conductors at entry to enclosure via conduit or enables an existing cable gland to be converted to a barrier type cable gland.
The device is fitted with a simple compound filled chamber which permits packing around individual insulated conductors. Assembly of the cable gland compresses and distributes the compound evenly to create a barrier seal at the point of entry into the enclosure. The compound chamber may be separated from the cured compound to ensure that the chamber has been effectively filled. If required, external voids can be repaired.
Provides female running coupler for cable gland or conduit entry.













Materials & Finishes

The CSB 656N cable gland is manufactured in Brass (standard), Nickel Plated Brass, 316 Stainless Steel or Aluminum. Brass NPT entries are nickel plated as standard.



Technical Data

1.Exd IIC Gb, Exe IIC Gb, Extb IIIC Db

2.Certificate No's Baseefa06ATEX0058X and IECEx BAS 06.0015X.

3.Suitable for use in: Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.

4.Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7, IEC/EN 61241-0 and IEC/EN 61241-1.

5.Ingress Protection: IP66, IP67 and IP68 (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.

6.Deluge Protection to: DTS01

7.Operating Temperature Range: -60°C to +80°C

8.Assembly Instruction Sheet: AI 375.



CSB656N Spec.pdf

CSB656 Assembly.pdf

CSB656N Assembly.pdf

2.Hawke Accessories 2013 IDK.pdf













Hawke Ordering Format

[Gland Type/Size/Thread/Options]

Example : CSB 656N/C/M32/M32













내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

호크 Hawke SB 474 Cable Gland 기술사양



안녕하세요 TIATIP 입니다.



Hawke의 Conduit System으로 대표되는 SB 474 Cable Gland를 소개합니다.





Hawke

Cable Glands

SB 474 Cable Gland

Group II Hazard

Flameproof Exd / Increased Safety Exe / Dust Extb /

Dual Certified ATEX - IECEx









Application

Outdoor or indoor use.
For particular use with:-
a) Cables that are not effectively filled, compact and/or circular, have tape bedding or have hygroscopic fillers.
b) Cables that exhibit 'COLD FLOW' characteristics.
c) Enclosures for gas group IIC, under 2 litres in volume and containing an ignition source.
d) Enclosures for gas groups IIA or IIB, which are greater than 2 litres in volume and contain an ignition source.











Features

Provides a barrier seal between the individual insulated cores within the cable and prevents entry of the products of an explosion into the cable.
The required number of holes for the cores are punched in the seal by means of a special tool to suit the core size.
Provides female running coupler for cable gland or conduit entry.













Materials & Finishes

The SB 474 cable gland is manufactured in Brass (standard), Nickel PlatedBrass, 316 Stainless Steel or Aluminium. Brass NPT entries are nickel plated as standard.





Technical Data

1.Exd IIC Gb, Exe IIC Gb, Extb IIIC Db

2.Certificate No's Baseefa06ATEX0056X and IECEx BAS 06.0013X.

3.Suitable for use in: Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.

4.Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7, IEC/EN 61241-0 and IEC/EN 61241-1.

5.Ingress Protection: IP66, IP67 and IP68 (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.

6.Deluge Protection to: DTS01

7.Operating Temperature Range: -60°C to +80°C

8.Assembly Instruction Sheet: AI 309.



SB474 Spec.pdf

SB474 Assembly 01.pdf

SB474 Assembly 02.pdf

2.Hawke Accessories 2013 IDK.pdf













Hawke Ordering Format

[Gland Type/Size/Thread/Options]

Example : SB 474/C/M32/M32/Punch Tool No.1











내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com





저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

토마스앤베츠의 대표적 방폭브랜드 DTSKOPEX-EX 를 소개합니다


안녕하세요 TIATIP 입니다.



T&B(Thomas&Betts,TNB)의 제품군 가운데 방폭과 같은 위험지역 및 관련 환경에 적용가능한 방폭형 조명, 피팅, 박스, 외함, 및 각종 접속자재를 소개합니다. 아래 카탈로그를 참고하시기 바랍니다. DTS, KOPEX-Ex, Lighting, Boxes, Cabinets, Conduits, Fittings & Accessories for Hazardous and Hostile Areas







Contents

Oil & Gas-Upstream Applications

Oil & Gas-Midstream Applications
Oil & Gas-Downstream Applications
Food & Beverage Applications
Chemical & Pharmaceutical Applications
World Standards & What They Mean
Zone Defi nitions-Onshore Gases & Vapours
Zone Defi nitions-Offshore Gases & Vapours
Zone Defi nitions-Dust
DTS-Product Marking Guide
Kopex Ex-Product Marking Guide
Index of Ingress Protection
Photometry



Ex Lighting Fittings

Lighting Fittings - Selection Guide
Ex Lighting
XFF Range - Ex d
XFP Range - Ex de
XEL Range - Ex d
XEP Range - Ex de
XF Range - Ex de
XFB / XFL Range - Ex n
XDF Range - Ex nA
EVS Range - Ex de
EVN Range - Ex n
EVD Range - Ex t
ESB Range - Ex de








Ex Emergency and Escape Lighting
XFF-EM Range - Ex d
XFP-EM Range - Ex de
XEL-BAES Range - Escape Lighting - Ex d
EVS-EM Range - Ex de
EVS-EMA Range - Ex de
EVN-EM Range - Ex n
EVN-EMA Range - Ex n
EVD-EM Range - Ex t
EVD-EMA Range - Ex t
ESB-EM Range - Ex de





Industrial Lighting
FF Range
EL Range
SF / QF / HF Range
EVT Range
EST Range
FB / FL Range
HF Range











Industrial Emergency Lighting
FR-EM / FF-EM Range
EVT-EM Range
EVT-EMA Range
EST-EM Range
Lighting Accessories & Spare Parts
Lamps Guide












Ex Boxes & Enclosures
Boxes & Enclosures - Selection Guide
XBL Range - XB100 Junction Boxes - GRP
XBL Range - Junction Boxes - GRP

XBL Range - Instrumentation Boxes - GRP
XBL-A Range - Control Boxes - GRP
XB Range - Instrumentation Boxes - Aluminium

XB-A Range - Control Boxes - Aluminium
XBi Range - Instrumentation Boxes - Stainless Steel
XBi-A Range - Control Boxes - Stainless Steel
GUV Range - Junction Boxes - Aluminium
EFDC / SRC / XMC Range - Control Boxes - Aluminium
EJB Range - Custom Built Panels - Aluminium
Box Accessories & Spare Parts







Conduit Systems
Conduit Fittings
EXB / EXBB Range
EXBQM / EXPQA Range
EXLB / EXLT / EXLH / EXBBT / EXLHC Range
EXSB / EXST / EXSH / EXSBBT / EXSHC Range
G1 Gland

90º Elbow Gland
Group II Gland
Universal & Universal Swivel Gland
PA / PAP NPT Range
PE / PEP ISO Range
PA-B / PAP-B NPT & ISO Range
XP Flex Range
Enlargers, Reducers

Thread Convertors

Ex d Stopping Plugs

Ex e Stopping Plugs

Ex Accessories

















DTS KOPEX Hazardous Area Catalogue Part 1of2.pdf

DTS KOPEX Hazardous Area Catalogue Part 2of2.pdf

T&B Products Lineup Company Profile 2011EN IDK.pdf













T&B, TNB, TaNdB

Thomas&Betts, ThomasaNdBetts

티앤비, 티엔비, 티앤드비, 티엔드비

토마스앤베츠, 토마스앤배츠, 토마스엔베츠, 토마스엔배츠

토머스앤베츠, 토머스앤배츠, 토머스엔베츠, 토머스엔배츠













내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com





저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Killark, UNF/UNY시리즈, Fittings, Expansion Conduit Unions, F67



안녕하세요 TIATIP 입니다.



오늘은 킬락 Killark 의 Fittings 가운데, Conduit 확장유니온에 대해 살펴보도록 하겠습니다.







KILLRK

Fittings

Expansion Conduit Unions

UNFS Series : Standard Length, Female x Female

UNYS Series : Standard Length, Male x Female
UNFL Series : Long Length, Female x Female

UNYL Series : Long Length, Male x Female







Application
• To provide for slight expansion and contraction of conduit runs
• To retrofit sections of conduit runs









Features
• Tapered threaded hubs (NPT) for rigid conduit and IMC
• Telescoping components allows conduit to be inserted between
fixed threaded hubs
• Internal copper alloy grounding spring assures positive grounding
• Close tolerance of mating parts eliminates passage of flame
• Compact diameter allows use where conduit is closely spaced
• Available in standard and long style, male and female version









Material/Finish
Body/Sleeve — Steel/Zinc Electroplate
Grounding Spring — Beryllium Copper/Natural Finish







Catalog Number (Hubbell, Killark)

Hubbell,Killark,UNF,UNY,UNFS1,UNFS2,UNFS3,UNFL1,UNFL2,UNFL3

UNYS1,UNYS2,UNYS3,UNYL1,UNYL2,UNYL3





Killark Connectors Fittings F.pdf















내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절


BLOG main image
by TIATIP

카테고리

TI Story (948)N
TIA (92)
TIP (194)
TIEx (592)N
TIS (36)
TIO (23)
TiNoTe (10)
The OtherS (1)
