Killark Expansion Fittings & Deflection Fittings 2017 하반기 킬락 신제품 소개



안녕하세요 TIATIP 에디터입니다. 하늘을 보면 가을이 성큼 다가오고 있음을 느끼게 됩니다. 오늘도 건강하고 활기찬 최고의 하루 만들어가시길 바라면서, 킬락에서 2017년도 하반기 새롭게 출시된 Expansion Fittings, Deflection Fittings 자료를 포스팅합니다. 추후 실물자료가 입수되는 대로 스터디하여 추가 포스팅하도록 하겠습니다.





HUBBELL Harsh & Hazardous

KILLARK

Expansion Fittings & Deflection Fittings

Solutions for the Construction Industry





1. Expansion Fittings - AF Series, AF8 Series

Applications
AF/AF8 Series Expansion Fittings are for use with IMC or rigid conduit installations. The AF/AF8 Series prevents damage of the electrical installations typically used in buildings and bridges by compensating linear movement due to temperature fluctuation or structural movement. This series provides up to a maximum 4” and 8” conduit movement (2” and 4” in either direction).



For applications involving IMC, a 15” minimum length of rigid conduit should be used entering the expansion fitting due to the slightly smaller O.D. of the IMC











2. Deflection Expansion Fittings - DF Series







Applications
DF Series Deflection Fittings compensate any directional movement between two conduit joints. These fittings can withstand sporadic vibrations channeled by rotating equipment or vehicular traffic. The DF
Series allows for a ¾” contraction and extension movement as well as a 30° angular deflection to any direction and still maintain its structural integrity.



3. Expansion Fittings - TAF Series



Applications
TAF Series Expansion Fittings compensate for linear movement between two conduit joints in runs of EMT (electrical magnetic tubing) conduit. This series provides up to a maximum 4” conduit movement (2” in either direction). Aids in preventing damaged conduit runs caused by temperature fluctuations and structural variations by assisting in movement.



4. Bonding Jumpers - AJ Series, AJE Series



Applications Type AJ is used for bonding two rigid, EMT or IMC steel/aluminum conduits together to ensure the required electrical conductivity between raceways.


Type AJE is used for bonding conduit to flat surfaces, such as boxes to ensure the required electrical conductivity between raceways.



5. Expansion Combo Fittings - AF Series, DF Series, AFDF Series





Applications
AFDF Series Expansion/Deflection Combo Fittings compensates for linear and 3/4” level movement in any direction between two conduit joints in runs of IMC or rigid conduit.
AFDF Series combines the DF style fitting with the AF style fitting for an additional 4” movement (2” in either direction) when the 3/4” linear movement in the DF is not enough. Helps prevent damaged conduit
runs caused by temperature fluctuations and structural variations by assisting in movement.





Technical Data

Hubbell, Killark, Fittings, Fitting, Expansion Fittings, Deflection Fittings, Expansion/Deflection Combo Fittings, Expansion Conduit Unions, Bonding Jumpers, AF Series, AF8 Series, AFDF Series, AJ Series, AJE Series, DF Series, TAF Series, UNFS Series, UNYS Series, UNFL Series, UNYL Series, 허벨, 킬락, 피팅, 방폭피팅

KILLARK Expansion & Deflection Fittings 20170904 EN.pdf

6.Killark Fittings IDK F.pdf

Note : Specifications are subject to change without notice.

소개된 제품 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해를 부탁 드립니다. 기타 문의 상담은 하기 전문점을 통해 진행해 주시기 바랍니다.













국내 상담문의 및 기술지원

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

T&B Fittings, Rigid and Intermediate Metal Conduit Fittings, Locknuts 기술사양



안녕하세요 TIATIP 입니다. 오늘 이 시간에는 Thomas&Betts의 Rigid and Intermediate Metal Conduit Fittings 제품군 가운데 Locknuts 와 관련하여 함께 살펴보도록 하겠습니다.









Thomas&Betts

TnB

T&B Fittings

Rigid and Intermediate Metal Conduit Fittings





1. Locknuts

Available in your choice of steel/malleable iron or aluminum.

• Steel from 1⁄4" to 2" and malleable iron from 21⁄2" to 6"
• Aluminum 624 in all sizes









2. Sealing Locknuts

Provides positive seal against water and oil.

• For use with rigid and intermediate metal conduits or fittings
• Provides watertight or raintight seal at all enclosures









3. Bonding Locknuts

Ensures positive bonding of conduit to box and prevents loosening due to vibration!

• Steel or malleable iron (steel through 2")
• Can be used anywhere an ordinary locknut is installed
• Also can be used for Service Entrance applications in conformance with code
• T&B rigid conduit and EMT (thinwall) fittings comply with Federal Specification A-A-50553



Technical Data & Std. Cat No.



ECPS A TnB Fittings Vol1 Locknuts 2007XXXX Section A.pdf



139,140,141,142,143,144,145,146,147,148,149,150,151,152,153,

141AL,142AL,143AL,144AL,145AL,146AL,147AL,148AL,149AL,

150AL,151AL,152AL, 153AL,141-SST,142-SST,143-SST,144-SST,

145-SST,146SST,141SST,142SST,143SST, 144SST,145SST,146SST,

141SL, 142SL, 143SL, 144SL, 145SL, 146SL,

106,107,108,109,110,111,112,113,114,115



△ Notice : Specification are subject to change without notice.

소개된 제품 및 시스템의 사양, 재질, 치수, 기타 기재 내용은 제조공급사의 사정이나, 성능향상을 위해 예고 없이 단종, 대체되거나 변경되는 경우가 있으므로 양해해주시기 바랍니다. 기타 상세한 상담은 전문대리점을 통해 진행해 주시기 바랍니다. 고맙습니다.













국내 상담문의 및 기술지원

CUSTOMER  SUCCESS  IDK

deric@jadongwha.com

http://www.tiatip.com



저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

T&B, Type A-Non-Metallic Liquidtight Conduit & Fittings, 3721-TB



안녕하세요 TIATIP 입니다.



오늘 이 시간에는 Non-Metallic Liquidtight Conduit & Fittings, 3721-TB 에 대해 살펴보도록 하겠습니다.



Thomas&Betts

TnB, T&B Catalog Number : 3721-TB







Description :

1/2 in. steel Type A liquidtight connector with insulated throat and sealing ring with steel retainer.









Features :

Steel or malleable iron construction with nylon-insulated throat.

Santoprene sealing gasket includes Type 316 stainless steel retaining ring.

NPT hub threads seal in female threads.

Offers high mechanical pull-out strength.

Supplied with sealing ring and steel locknut.

Available in straight, 45 degree and 90 degree in hub sizes from 3/8 in. to 2 in..









Application :

Provides a positive seal against water, oil and dust











Technical Data :

Type A Liquidtight Connectors Conduit.pdf

Type A Liquidtight Flexible Metal Conduit Connectors.pdf

TnB Sales Drawings WSD000106.pdf

Guide to Nonmetallic Conduit Applications.pdf

















내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Thomas&Betts(T&B,TnB) EXB/EXBB Conduit 사양소개



안녕하세요 TIATIP 입니다.



오늘 이 시간에는

Thomas&Betts(T&B,TnB) EXB/EXBB Conduit 사양에 대해 살펴보도록 하겠습니다.











Thomas&Betts Corporation

Kopex-Ex

EXBConduit

EXBB Conduit
Exe Antistatic Conduit













Description :

Standard Weight Antistatic Conduit manufactured from nylon 12.Available with Stainless Steel 316 braiding for additional abrasion resistance and EMC Screening, -20°C to +80°C



Material :

Polyamide 12

Stainless Steel 316







Intended Use :

An electrically discharging cable protection system.

This system protects electrical cables and wires from mechanicaldamage and UV radiation

Exe Zones 1, 2, 21 & 22 Gas Groups IIA IIB and IIC



Compatible Fittings :

IP66 -EXPQ* for unbraided EXB Conduit

IP66 -EXBQ* for Stainless Steel Braided EXBB Conduit



Approvals :

ATEX directive 94/9/EC (ATEX 95) to standardsIEC 60079-0, IEC 60079-7, EN60079-0, EN60079-7, IEC51241-0 IEC51241-1 EN51241-0 & EN51241-1.



Certifications :

BASEEFA ATEX08.0003X

IECEx BAS08.0001X







EXBQM / EXPQA Range
Nylon conduit fi ttings



EXB - Standard Weight











EXB With EXPQ* Fitting

Installation Guide

http://youtu.be/duJ6vW-TV4g









EXBB - 316 Overbraided





EXBB With EXBQ* Fitting

Installation Guide

http://youtu.be/sLYP8cZvxZY







Thomas&Betts

DTS KOPEX Hazardous Area











Catalog Numbering

EXB0310, EXB0330, EXB0350,EXB0410, EXB0430, EXB0450,EXB0510, EXB0530, EXB0550,EXB0610, EXB0630, EXB0650,EXB0710, EXB0730, EXB0750,EXB0810, EXB0830, EXB0850,EXBB, EXBB0310, EXBB0330, EXBB0350,EXBB0410, EXBB0430, EXBB0450,EXBB0510, EXBB0530, EXBB0550,EXBB0610, EXBB0630, EXBB0650, EXBB0710, EXBB0730, EXBB0750,EXBB0810, EXBB0830, EXBB0850,

EXPQ,EXPQM, EXPQM0304, EXPQM0404, EXPQM0505, EXPQM0606, EXPQM0707, EXPQM0808, EXPQA, EXPQA0304, EXPQA0404, EXPQA0505, EXPQA0606, EXPQA0707, EXPQA0808,

EXBQ,EXBQM,EXBQM0304,EXBQM0404,EXBQM0505,EXBQM0606,

EXBQM0707, EXBQM0808, EXBQA,EXBQA0304,EXBQA0404,EXBQA0505,EXBQA0606,EXBQA0707,

EXBQA0808













Technical Data

DTS KOPEX Hazardous Area CAT01.pdf

DTS KOPEX Hazardous Area CAT02.pdf

DTS KOPEX Hazardous Area Old CAT.pdf













내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com





저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

T&B(TnB), Watertight, Flexible Connections Support Movement and Thermal Expansion 자료소개



안녕하세요 TIATIP 입니다.



T&B(TnB) Fittings 가운데 XD Expansion/Deflection Coupling for Rigid Conduit 자료를 살펴보겠습니다.





T&B (TNB, Thomas&Betts)



T&B® XD Expansion/Deflection Coupling for Rigid Conduit

A Better Solution for Expansion/Deflection Coupling of Rigid Metal Conduit!



Use the T&B XD Expansion/Deflection Coupling to join two conduit runs in applications where movement in any direction is required. The coupling provides a flexible, watertight connection, accommodating axial or parallel movement of up to 3⁄4" and angular movement of up to 30˚ from normal position.

While similar fittings exist on the market today, this new and enhanced XD Expansion/Deflection Coupling ships complete with an Erickson® type conduit union to significantly reduce installation time and effort and includes a stainless steel inner sleeve for extreme durability, protection and easier wire pulling. The hubs are zinc-plated and then coated with aluminum acrylic paint for dual-layer corrosion protection. In addition, the copper ground mounting plates and internal grounding bonding jumper are entirely enclosed inside the coupling for added security against vandalism and theft.





T&B(TnB), Typical Applications:
• Bridges
• Tunnels
• Inter-building walkways
• Docks and piers
• Wastewater and water treatment facilities
• Any other application in which conduit runs are subject to movement due to external forces or temperature changes





T&B(TnB), Features:
• Accommodates axial expansion/contraction up to 3⁄4", parallel deflection up to 3⁄4" and angular misalignment up to 30˚
• Suitable for use indoors, outdoors, direct buried or embedded in concrete
• Watertight, flexible neoprene outer jacket, zinc-plated and acrylic-painted hubs and stainless steel tamperproof straps ensure superior corrosion resistance — ideal for use in harsh environments
• Copper ground mounting plates and internal grounding bonding jumper both entirely enclosed to safeguard against theft
• Includes an Erickson® type conduit union for faster, easier installation to reduce labor costs
• Durable stainless steel inner sleeve provides a constant, smooth inner diameter in any position to ease wire pulling and protect wire insulation
from damage

• NPT threaded hubs fit standard threaded rigid metal conduit
• Can also be used with rigid PVC conduit with the use of standard adapters (not supplied)





T&B(TnB), Standard Materials/Finishes:
Hub: Ductile cast iron, zincplated and painted with aluminum acrylic paint
Inner Sleeve: Stainless steel
Internal Grounding Bonding Jumper: Flexible copper braid
Ground Mounting Plates: Copper Hub Rings: Zinc-plated steel
Outer Jacket: Molded neoprene (natural black)
Jacket Straps: Stainless steel









Why the T&B XD Expansion/Deflection Coupling is Better

1. Erickson® Type Conduit Union
Included union significantly speeds up installation, reducing your labor costs.


2.  Stainless Steel Inner Sleeve
Stronger and more durable than plastic tubes or corrugated hose and better able to withstand friction from pulling ropes. Provides a smooth transition to ease wire pulling and reduce chance of damage to wire insulation.


3. Enclosed Copper Ground Mounting Plates
Totally enclosed and secured with tamperproof stainless steel jacket straps for protection against vandalism and theft.


4. Dual-Layer Corrosion-Protected Hubs
Ductile cast iron hubs are zinc-plated and then coated with aluminum acrylic paint for extra corrosion resistance.





T&B(TnB), Catalogue Number & Keywords
T&B Fittings,XD Expansion Coupling,XD Deflection Coupling,XD3-TB,XD4-TB,XD5-TB,XD6-TB,XD7-TB,XD8-TB,XD9-TB,XD010-TB,
XD012-TB,XD014-TB,XD3TB,XD4TB,XD5TB,XD6TB,XD7TB,XD8TB,XD9TB, XD010TB,XD012TB,XD014TB











Rigid IMC Conduit Fittings.pdf

T&B Products Lineup Company Profile 2011EN IDK.pdf

















내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com









저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

티앤비(티엔비), T&B Fittings, Shureflex Nylon Liquidtight Conduit System 자료



안녕하세요 TIATIP 입니다.



오늘 이 시간에는 티앤비(티엔비) T&B(Thomas&Betts,TNB)의 Fitting류 가운데 Shureflex 제품을 살펴보겠습니다.



Fast and Flexible Protection for Electrical Cables
Shureflex™
Nylon Liquidtight Conduit System





Quick and Secure One Piece Fitting Installation With No Tools Required!

The new line of Shureflex™ Nylon Liquidtight Conduit and Fittings
from Thomas & Betts provides all of the benefits of a halogen-free,
watertight system for protection of electrical cables-plus hasslefree
installation to save you time and money.


With its unique, self-locking mechanism, the Shureflex™ system enables quick and secure installation without tools. Simply push the fitting onto the conduit, and you’ve achieved an IP66-rated seal with superior mechanical strength. For a higher IP rating, use the same fitting; just add a sealing washer to the fitting
and an O-ring to the conduit. Now you’ve achieved IP68 and IP69K
protection. Disconnecting is just as easy-press the release ring on
the fitting and twist and pull out the conduit. No tools are needed, and you
can reuse both conduit and fittings.


The T&B® Shureflex™ Nylon Liquidtight
Conduit System includes three grades of conduit to meet varying flexibility
and crush-resistance needs. Choose among straight and 90˚ fittings with
NPT and ISO threads, T fittings, Y distributors and a variety of other available fittings for special applications-plus a full range of accessories like sealing washers, O-rings, locknuts and mounting brackets-to meet all of your needs for safe, secure and watertight connections.



◎ Flexible, lightweight Polyamide 6 or 12 (PA6 or PA12) construction
◎ Halogen-, phosphor- and cadmiumfree material-ideal for use in confined spaces
◎ UL94V-2 or UL94HB flammability rating for safety
◎ Achieve IP66, IP68 and IP69K watertight ratings with just one fitting
◎ Wide operating temperature range of -40˚ C to 105˚ C or -50˚ C to 90˚ C
◎ Complete system includes three grades of conduit, a variety of fittings
and accessories

◎ UL Recognized



Applications:
◎ Wind turbines
◎ Passenger rail
◎ Shipbuilding
◎ Robotics
◎ Aviation
◎ Automotive
◎ Machine Builders
◎ Tunnels
◎ Telecom
◎ Confined Spaces
◎ Use Indoors or Outdoors















Shureflex Nylon Liquidtight Conduit System.pdf

T&B Products Lineup Company Profile 2011EN IDK.pdf











T&B, TNB, TaNdB

Thomas&Betts, ThomasaNdBetts

티앤비, 티엔비, 티앤드비, 티엔드비

토마스앤베츠, 토마스앤배츠, 토마스엔베츠, 토마스엔배츠

토머스앤베츠, 토머스앤배츠, 토머스엔베츠, 토머스엔배츠













내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com





저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Killark, Factory Sealed Controls, SEAL-XM Series



안녕하세요 TIATIP 입니다.



킬락(KILLARK)에서 새롭게 선보이는 실링피팅류(Sealing Fittings)에 대하여 소개드립니다.



Sealing Fittings typically not required, reducing installation time and cost

• Factory Sealed Universal Contact Blocks
• LED Pilot Light Devices as Standard
• No ‘Seal Plate’ Allows for Direct Wiring
• Explosion-Proof and NEMA 3 Weatherproof
• Available for Class I, Group B Applications











Factory Sealed Controls, SEAL-XM











Applications

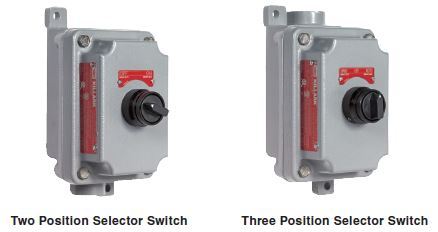

Seal-XMTM Factory Sealed push button stations, selector switches, pilot lights
and tumbler switches are used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as:
• Hazardous locations due to the presence of flammable gases or vapors,
combustible dusts or easily ignitable fibers or flyings
• Installations at petroleum refineries, chemical and petrochemical plants and
other processing or storage facilities where similar hazards exist
• Use in conjunction with magnetic starters or contactors for remote control
of motors





Features
• Incorporates Factory Sealed Universal contact blocks and GOB3 LED pilot
light devices
• External sealing fittings typically not required, reducing installation time
and cost
• No seal plate between the electrical device and back box allows direct
wiring to contact terminals
• NEMA 3 weatherproof
• Grounding boss supplied in the splice box
• Sold as complete units 1/2” , 3/4” Dead End and thru feed. 1” hubs available on request
• Standard finish is a grey epoxy powder baked on for ultimate corrosion resistance
• More wiring room in back box





Material & Groups

• FXCS-*-M Groups C, D : Copper free aluminum cover & boxFXCS-*-MB Groups B, C, D : Copper free aluminum cover & box

• FXCS-*-MBI Groups B, C, D : Copper free aluminum cover & ductile
iron back box zinc electroplated

• FXCS-*-MI Groups C, D : Copper free aluminum cover & ductile
iron back box zinc electroplated

Stainless steel captive cover screws

Operating shafts stainless steel
*Group “B” (-MB & -MBI) versions need not be sealed within first 60” of conduit. Sealing fitting required beyond 60”









Factory Sealed Controls, SEAL-XM









SEAL-XM MOMENTARY CONTACT SINGLE PUSH BUTTON

FXCS-1B1-M, FXCS-4B1-M, FXCS-2B1-M, FXCS-5B1-M
FXCS-1B2-M, FXCS-4B2-M, FXCS-2B2-M, FXCS-5B2-M
FXCS-1B3-M, FXCS-4B3-M, FXCS-2B3-M, FXCS-5B3-M





SEAL-XM MOMENTARY CONTACT DOUBLE PUSH BUTTON

FXCS-1B4-M, FXCS-4B4-M, FXCS-2B4-M, FXCS-5B4-M
FXCS-1B5-M, FXCS-4B5-M, FXCS-2B5-M, FXCS-5B5-M
FXCS-1B7-M, FXCS-4B7-M, FXCS-2B7-M, FXCS-5B7-M





SEAL-XM LED PILOT LIGHT

FXCS-1B24CL-M, FXCS-4B24CL-M, FXCS-2B24CL-M, FXCS-5B24CL-M
FXCS-1B24GL-M, FXCS-4B24GL-M, FXCS-2B24GL-M, FXCS-5B24GL-M
FXCS-1B24RL-M, FXCS-4B24RL-M, FXCS-2B24RL-M, FXCS-5B24RL-M



Factory Sealed Controls, SEAL-XM









SEAL-XM DOUBLE LED PILOT LIGHT

FXCS-1B30CL-M, FXCS-4B30CL-M, FXCS-2B30CL-M, FXCS-5B30CL-M
FXCS-1B30GL-M, FXCS-4B30GL-M, FXCS-2B30GL-M, FXCS-5B30GL-M
FXCS-1B30RL-M, FXCS-4B30RL-M, FXCS-2B30RL-M, FXCS-5B30RL-M
FXCS-1B30RL-GL-M, FXCS-4B30RL-GL-M
FXCS-2B30RL-GL-M, FXCS-5B30RL-GL-M



SEAL-XM MOMENTARY CONTACT PUSH BUTTON AND LED PILOT LIGHT

FXCS-1B13-C-M, FXCS-4B13-C-M, FXCS-2B13-C-M, FXCS-5B13-C-M
FXCS-1B13-O-M, FXCS-4B13-O-M, FXCS-2B13-O-M, FXCS-5B13-O-M
FXCS-1B13-U-M, FXCS-4B13-U-M, FXCS-2B13-U-M, FXCS-5B13-U-M



SEAL-XM MAINTAINED CONTACT PUSH/PULL MUSHROOM

FXCS-1MMG3-M, FXCS-4MMG3-M, FXCS-2MMG3-M, FXCS-5MMG3-M
FXCS-1MMR3-M, FXCS-4MMR3-M, FXCS-2MMR3-M, FXCS-5MMR3-M
FXCS-1MMK3-M, FXCS-4MMK3-M, FXCS-2MMK3-M, FXCS-5MMK3-M





Factory Sealed Controls, SEAL-XM









SEAL-XM TWO POSITION SELECTOR SWITCH - MAINTAINED CONTACT

FXCS-1S2A1-M, FXCS-4S2A1-M, FXCS-2S2A1-M, FXCS-5S2A1-M
FXCS-1S2A5-M, FXCS-4S2A5-M, FXCS-2S2A5-M, FXCS-5S2A5-M



SEAL-XM THREE POSITION SELECTOR SWITCH - MAINTAINED CONTACT

FXCS-1S3C4-M, FXCS-4S3C4-M, FXCS-2S3C4-M, FXCS-5S3C4-M
FXCS-1S3C5-M, FXCS-4S3C5-M, FXCS-2S3C5-M, FXCS-5S3C5-M



SEAL-XM TWO POSITION SELECTOR SWITCH - SPRING RETURN

SELECTOR SWITCH OPERATION - Spring return to left from right - maintained in left.

FXCS-1S2L3F-M, FXCS-4S2L3F-M, FXCS-2S2L3F-M, FXCS-5S2L3F-M



SEAL-XM THREE POSITION SELECTOR SWITCH - SPRING RETURN

SPRING RETURN TO CENTER FROM LEFT AND RIGHT - MAINTAINED CENTER

FXCS-1S3M6G, FXCS-4S3M6G, FXCS-2S3M6G, FXCS-5S3M6G



SPRING RETURN TO CENTER FROM RIGHT - MAINTAINED CENTER AND LEFT

FXCS-1S3L6G, FXCS-4S3L6G, FXCS-2S3L6G, FXCS-5S3L6G



SPRING RETURN TO CENTER FROM LEFT - MAINTAINED CENTER AND RIGHT

FXCS-1S3R6G, FXCS-4S3R6G, FXCS-2S3R6G, FXCS-5S3R6G





Factory Sealed Controls, SEAL-XM













SEAL-XM TWO POSITION KEYED SELECTOR SWITCH - MAINTAINED CONTACT

FXCS-1K2A1-M FXCS-4K2A1-M, FXCS-2K2A1-M FXCS-5K2A1-M
FXCS-1K2A5-M FXCS-4K2A5-M, FXCS-2K2A5-M FXCS-5K2A5-M



SEAL-XM THREE POSITION KEYED SELECTOR SWITCH - MAINTAINED CONTACT

FXCS-1K3C4-M FXCS-4K3C4-M, FXCS-2K3C4-M FXCS-5K3C4-M
FXCS-1K3C5-M FXCS-4K3C5-M, FXCS-2K3C5-M FXCS-5K3C5-M





SEAL-XM TWO POSITION KEYED SELECTOR SWITCH - SPRING RETURN

SELECTOR SWITCH OPERATION - Spring return to left from right - maintained in left.

FXCS-1K2L3F22D-M FXCS-4K2L3F22D-M

FXCS-2K2L3F22D-M FXCS-5K2L3F22D-M



SEAL-XM THREE POSITION KEYED SELECTOR SWITCH - SPRING RETURN

SELECTOR SWITCH - OPERATION - SPRING RETURN TO CENTER FROM LEFT AND RIGHT - MAINTAINED IN CENTER

FXCS-1K3M6G32D-M FXCS-4K3M6G32D-M

FXCS-2K3M6G32D-M FXCS-5K3M6G32D-M





SELECTOR SWITCH - OPERATION - SPRING RETURN TO CENTER FROM RIGHT - MAINTAINED CENTER AND LEFT

FXCS-1K3L6G32D-M FXCS-4K3L6G32D-M
FXCS-2K3L6G32D-M FXCS-5K3L6G32D-M



SELECTOR SWITCH - OPERATION - SPRING RETURN TO CENTER FROM LEFT - MAINTAINED CENTER AND RIGHT

FXCS-1K3R6G32D FXCS-4K3R6G32D, FXCS-2K3R6G32D FXCS-5K3R6G32D





Factory Sealed Controls, SEAL-XM











CUSTOM LEGEND PLATES (Mounting Screws Included)

XCSNP-ON, XCSNP-OFF, XCSNP-START, XCSNP-STOP, XCSNP-ESTOP, XCSNP-UP, XCSNP-DOWN, XCSNP-FAST, XCSNP-SLOW, XCSNP-IN, XCSNP-OUT, XCSNP-RAISE, XCSNP-LOWER, XCSNP-HIGH, XCSNP-LOW, XCSNP-OPEN, XCSNP-CLOSE, XCSNP-FORWARD, XCSNP-REVERSE, XCSNP-READY
XCSNP-RUN, XCSNP-RESET, XCSNP-JOG, XCSNP-INCH, XCSNP-TEST, XCSNP-BLANK, XCSNP-ON-OFF, XCSNP-OFF-ON, XCSNP-OFF-REMOTE, XCSNP-START-STOP, XCSNP-POWER-ON, XCSNP-UP-DOWN, XCSNP-RAISE-LOWER, XCSNP-HIGH-LOW, XCSNP-SLOW-FAST, XCSNP-START-JOG, XCSNP-RUN-JOG, XCSNP-JOG-RUN, XCSNP-JOG-FORWARD, XCSNP-JOG-REVERSE, XCSNP-FWD-REV, XCSNP-HAND-AUTO, XCSNP-AUTO-HAND, XCSNP-MANUAL-AUTO, XCSNP-SLOW-FAST, XCSNP-OPEN-CLOSE
XCSNP-MOTOR-RUN, XCSNP-MOTOR-STOP, XCSNP-BLANK-2P, XCSNP-HAND-OFF-AUTO, XCSNP-AUTO-OFF-HAND, XCSNP-HAND-OFF-REMOTE
XCSNP-STP-RUN-STRT, XCSNP-FWD-OFF-REV, XCSNP-REV-OFF-FWD, XCSNP-RUN-OFF-JOG, XCSNP-JOG-OFF-RUN, XCSNP-SLOW-OFF-FAST
XCSNP-LOW-OFF-HIGH, XCSNP-RUS-OFF-LOWR, XCSNP-LOCL-OFF-REM, XCSNP-1-OFF-2, XCSNP-BLANK-3P





LED Pilot Lights

YOIDECLSEDHA, YOIDECLSEDHG, YOIDECLSEDHPW, YOIDECLSEDHR, YOIDECLSEDHS, YOIDECLSTD2A, YOIDECLSTD2G, YOIDECLSTD2W, YOIDECLSTD2R, YOIDECLSTD2S

















SBSEAL-XM 07-13.pdf

Killark Controls C.pdf















내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com









저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Killark, 킬락, WH Series, Fittings, Conduit Hubs in Stainless Steel



안녕하세요 TIATIP 입니다.



Killark Catalog Supplement, WH Series에 대하여 소개자료를 포스팅합니다.



Features/Specifications

• Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(B), Class I, Div. 2, (Suitable for use in Class I Zone 2 applications) 502.10, 503.10 and 505- 15.
• Suitable for use with NEMA type enclosures 2, 3, 3R, 4, 4x 12 and 13.





Applications
Conduit hubs provide a liquid tight, oil tight and dust tight termination of  electrical conduit through the walls of sheet metal enclosures. The hubs fit into standard knockout dimensions.









Features
• Oversized locknut provides for a strong vibration-proof termination
• Captive sealing ring
• Serrations on hub body and locknut provide effective positive ground path
• Rugged 316 Stainless Steel
• Insulated throat protects conductors
• Suitable for use with NEMA type enclosures 2, 3, 3R, 4, 4x, 12 and 13
• Grounding provision for added safety



Material/Finish
• Nut and body 316 Stainless Steel
• Natural finish
• Sealing ring gasket - Viton
• Insuliner - Lexan
• Ground screw - Stainless steel









Killark Catalog Number

WH-1SSG, WH-2SSG, WH-3SSG, WH-4SSG, WH-5SSG, WH-6SSG, WH-7SSG, WH-8SSG, WH-9SSG, WH0SSG, WH1SSG, WH2SSG, WH3SSG, WH4SSG, WH5SSG, WH6SSG, WH7SSG, WH8SSG, WH9SSG, WH0SSG











Fittings WH Series Conduit Hubs.pdf

Harsh_Harzardous Locations.pdf

















내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com







저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

OSCG, Ex Type, Flexible Fittings, OSEP





안녕하세요 TIATIP 입니다.



오늘 이 시간에는 대한민국 케이블글랜드 국가대표 OSCG(오에스씨지)의 제품군 가운데 Explosion Proof, Flexible Fittings, OSEP Type 을 살펴보겠습니다.







Explosion Proof, Flexible Fittings, OSEP Type





OSEP Type

◎ Flameproof





Application

◎ Explosion proof flexible fittings type. This type is developed for the cabling at Zone1 & 2 in hazardous area pursuant to the instruction of explosion proof on the factory electrical equipments, and regulation on gas-vapor explosion proof.

Passed explosion proof test for the electrical machine and device. High performance flexibility of seamless tube provides easy workability in the narrow space or complicated area.





오에스씨지(OSCG), Flexible Fittings 선정노하우

1. 플랙시블타입, Flexible Type (OSEP-16, -22, -28, -36, -42, -54, -70, -82, 104)

2. 엔트리부분의 나사산형식, Thread Type (NPT, PF, PT등)

3. 나사산크기, Thread Size (1/2". 3/4", 1", 1-1/4". 1-1/2", 2", 2-1/2", 3", 4"등)

4. 양단간의 길이, Length(L) : 300mm ~ 3000mm

5. 양단의 암/수 연결구성타입, Connection Type : Male-Male, Male-Female)

6. 필요수량, Quantity

7. 필요악세서리, Accessories(Locknut, Sealing Washer 등)

8. 품번예시

◎ OSCG, OSEP16/NPT1/2"(Male-Male)/500mm

◎ OSCG, OSEP22/NPT3/4"(Male-Male)/500mm

◎ OSCG, OSEP28/NPT1"(Male-Male)/500mm

◎ OSCG, OSEP36/NPT1.1/4"(Male-Male)/500mm

◎ OSCG, OSEP42/NPT1.1/2"(Male-Male)/500mm

◎ OSCG, OSEP54/NPT2"(Male-Male)/500mm

◎ OSCG, OSEP70/NPT2.1/2"(Male-Male)/500mm

◎ OSCG, OSEP82/NPT3"(Male-Male)/500mm

◎ OSCG, OSEP104/NPT4"(Male-Male)/500mm

◎ OSCG, OSEP16/NPT1/2"(Male-Female)/500mm

◎ OSCG, OSEP22/NPT3/4"(Male-Female)/500mm

◎ OSCG, OSEP28/NPT1"(Male-Female)/500mm

◎ OSCG, OSEP36/NPT1.1/4"(Male-Female)/500mm

◎ OSCG, OSEP42/NPT1.1/2"(Male-Female)/500mm

◎ OSCG, OSEP54/NPT2"(Male-Female)/500mm

◎ OSCG, OSEP70/NPT2.1/2"(Male-Female)/500mm

◎ OSCG, OSEP82/NPT3"(Male-Female)/500mm

◎ OSCG, OSEP104/NPT4"(Male-Female)/500mm







제품카탈로그(방폭환경)

OSCG Ex Type IDK Blue 2013V13.pdf





제품카탈로그(비방폭, 일반산업환경)

OSCG Normal Type IDK Green 2013V13.pdf



저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Killark, UNF/UNY시리즈, Fittings, Expansion Conduit Unions, F67



안녕하세요 TIATIP 입니다.



오늘은 킬락 Killark 의 Fittings 가운데, Conduit 확장유니온에 대해 살펴보도록 하겠습니다.







KILLRK

Fittings

Expansion Conduit Unions

UNFS Series : Standard Length, Female x Female

UNYS Series : Standard Length, Male x Female
UNFL Series : Long Length, Female x Female

UNYL Series : Long Length, Male x Female







Application
• To provide for slight expansion and contraction of conduit runs
• To retrofit sections of conduit runs









Features
• Tapered threaded hubs (NPT) for rigid conduit and IMC
• Telescoping components allows conduit to be inserted between
fixed threaded hubs
• Internal copper alloy grounding spring assures positive grounding
• Close tolerance of mating parts eliminates passage of flame
• Compact diameter allows use where conduit is closely spaced
• Available in standard and long style, male and female version









Material/Finish
Body/Sleeve — Steel/Zinc Electroplate
Grounding Spring — Beryllium Copper/Natural Finish







Catalog Number (Hubbell, Killark)

Hubbell,Killark,UNF,UNY,UNFS1,UNFS2,UNFS3,UNFL1,UNFL2,UNFL3

UNYS1,UNYS2,UNYS3,UNYL1,UNYL2,UNYL3





Killark Connectors Fittings F.pdf















내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Killark, K PAK 시리즈, Fittings, K-PAK Shelf Cartons, F3



안녕하세요 TIATIP 입니다.







K-PAK® packaging enables Killark distributors to feature fast-moving products in counter display areas.
Killark’s best selling standard location products have been repackaged into smaller shelf packs for effective product family presentation.
The uniformly sized (width and height are consistent) cartons allow items to be merchandised on a typical 48” w x 54” H x 18” gondola unit (not supplied by Killark).



Features/Benefits
• Cartons are suitable for counter merchandising display and/or warehouse storage.
• Open-top bin box displays products for easy customer self-service.
• All cartons are bar coded for easy electronic identification.
• Conduit bodies are packaged with appropriate covers and gaskets.


K-PAK Carton Dimensions
Full depth cartons: 6" W x 81/2" H x 15" D
Half depth cartons: 6" W x 81/2" H x 71/2" D
Display face (width & height) same for all cartons





O Fiitings - OC, OLB, OLL, OT Series

Catalog Number, Description, Quantity.

OC-1CG, 1/2" C w/cover & gasket, 40
OC-2CG, 3/4" C w/cover & gasket, 25
OC-3CG, 1" C w/cover & gasket, 20
OC-4CG, 1-1/4" C w/cover & gasket, 8
OC-5CG, 1-1/2" C w/cover & gasket, 8
OC-6CG, 2" C w/cover & gasket, 3
OLB-1CG, 1/2" LB w/cover & gasket, 40
OLB-2CG, 3/4" LB w/cover & gasket, 25
OLB-3CG, 1" LB w/cover & gasket, 15
OLB-4CG, 1-1/4" LB w/cover & gasket, 8
OLB-5CG, 1-1/2" LB w/cover & gasket, 5
OLB-6CG, 2" LB w/cover & gasket, 3
OLB-7CG, 2-1/2" LB w/cover & gasket, 1
OLB-8CG, 3" LB w/cover & gasket, 1
OLB-9CG, 3-1/2" LB w/cover & gasket, 1
OLB-0CG, 4" LB w/cover & gasket, 1
OLL-1CG, 1/2" LL w/cover & gasket, 40
OLL-2CG, 3/4" LL w/cover & gasket, 25
OLL-3CG, 1" LL w/cover & gasket, 15
OLL-4CG, 1-1/4" LL w/cover & gasket, 8
OLL-5CG, 1-1/2" LL w/cover & gasket, 8
OLL-6CG, 2" LL w/cover & gasket, 3
OLR-1CG, 1/2" LR w/cover & gasket, 40
OLR-2CG, 3/4" LR w/cover & gasket, 25
OLR-3CG, 1" LR w/cover & gasket, 15
OLR-4CG, 1-1/4" LR w/cover & gasket, 8
OLR-5CG, 1-1/2" LR w/cover & gasket, 8
OLR-6CG, 2" LR w/cover & gasket, 3
OT-1CG,1/2" T w/cover & gasket, 30
OT-2CG, 3/4" T w/cover & gasket, 25
OT-3CG, 1" T w/cover & gasket, 15
OT-4CG, 1-1/4" T w/cover & gasket, 8
OT-5CG, 1-1/2" T w/cover & gasket, 8
OT-6CG, 2" T w/cover & gasket, 2



SLB Fittings

Catalog Number, Description, Quantity.
SLB-1-CP, 1/2" Service entrance LB, 50
SLB-2-CP, 3/4" Service entrance LB, 25
SLB-3-CP, 1" Service entrance LB, 25



CO Fittings

Catalog Number, Description, Quantity.
COC-1CG, 1/2" C w/cover & gasket, 10
COC-2CG, 3/4" C w/cover & gasket, 10
COC-3CG, 1" C w/cover & gasket, 5
COLB-1CG, 1/2" LB w/cover & gasket, 10
COLB-2CG, 3/4" LB w/cover & gasket, 10
COLB-3CG, 1" LB w/cover & gasket, 5
COLL-1CG, 1" L w/cover & gasket, 10
COLL-2CG, 2" L w/cover & gasket, 10
COLL-3CG, 3" L w/cover & gasket, 5
COLR-1CG, 1/2" LR w/cover & gasket, 10
COLR-2CG, 3/4" LR w/cover & gasket, 10
COLR-3CG, 1" LR w/cover & gasket, 5
COT-1CG, 1/2" LR w/cover & gasket, 10
COT-2CG, 3/4" LR w/cover & gasket, 10
COT-3CG, 1" LR w/cover & gasket, 5



FS/FD Back Boxes/Covers

Catalog Number, Description, Quantity.
1FA-CP, Duplex cover, 50
1FT-CP, Toggle cover, 50
FCLA-CP, Duplex cover, 25
FDC-1-CP, 1/2" FDC box, 10
FDC-2-CP, 3/4" FDC box, 10
FD-1-CP, 1/2" FD box, 10
FD-2-CP, 3/4" FD box, 10
FSBC-CP, Blank cover, 50
FSC-1-CP, 1/2" FSC box,15
FSC-2-CP, 3/4" FSC box, 15
FST-CP, Cover, 25
FS-1-CP, 1/2" FS box, 20
FS-2-CP, 3/4" FS box, 20



WH Weatherproof Hubs

Catalog Number, Description, Quantity.
WH-1, 1/2" Conduit hub, 25
WH-2, 3/4" Conduit hub, 25
WH-3, 1" Conduit hub, 25





K-PAK Fittings.pdf

K-PAK Flyer.pdf

Killark 킬락 Connectors Fittings F.pdf









내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com





저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

Killark Catalog 링크 - Fittings (F)



안녕하세요 TIATIP 입니다.



오늘 이 시간에는 킬락(Killark)사의 피팅류(Fittings)를 각 카테고리별로 구분짓고,

해당 시리즈별 2011년도 버전 카탈로그와의 링크로 사용자에게 도움을 드리고자 합니다.





Standard Locations



• K-PAK® Shelf Cartons



• Duraloy® 7 Series Aluminum or Iron Conduit Bodies



• Duraloy® 8 Series Iron Conduit Bodies



• O Series / Duraloy® 5 Series Aluminum or Malleable Iron Conduit Bodies



• CO & Two Series Aluminum Conduit Bodies



• MO/MOL/NECLB Series Aluminum or Iron Mogul Conduit Bodies



• SLB/SLBM/SOLB/MLB Series Service Entrance



• WH Series Conduit Hubs



• CL/CLM/TWCL Series Pulling Elbow, Duct Seal



• FB/STFB Series Service Entrance



• F Series Covers, Accessories



• F Series Cast Device Boxes



• FSQ/FDQ Series Custom Drilled & Tapped Device Boxes



• VJ Series Outlet Boxes







Hazardous Locations



• ENY/EY/EYS/EYD Series Sealing Fittings



• ENY/EY/EYS/EYD Sealing Materials



• ENY40/EYD40 Series 40% Fill Sealing Fittings



• GEB/GE Series Aluminum and Iron Outlet Bodies



• GR Series Outlet Bodies



• X/XALB Series Conduit Bodies



• JL/JAL Series Outlet B



• GU/UN Series Unions



• UNF/UNY Series Expansion Conduit Unions



• PLUG/CUP/AN Series Threaded Insert Plugs, Rigid Conduit Nipples



• KDB/KB Series Drains and Breathers, Flame Arrestors



• R/RE/ADUP Series Reducing Bushings and Adapters



• ELBOWS



• ECF/EKJ Series Bronze Flexible Couplings



• EY Series Drain Seals







Connectors - Standard / Hazardous Locations



• K Series Liquidtight Connectors



• Z Series Aluminum Cord Connectors



• Z Increased Safety Cord Connectors



• CTCA Series Connectors for Tray Cable



• CMCA/MC Series Metal Clad Cable Connectors



• CMCXA/MCX Series Hazardous Location Metal Clad Cable Connectors



• ZHLN Series Increased Safety Locknuts



• PCC/ECC/RACC Series Conduit Clamps









내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com



저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절

안녕하세요 TIATIP 입니다.



오늘은 Killark 킬락의 방폭플러그와 방폭리셉터클에 대해 살펴봅니다.





Killak 킬락 Plugs and Receptacles



Ranging from 20 Amp bladed style to 200 Amp pin & sleeve configurations, Killark provides numerous solutions for safely supplying power to fixed and portable equipment in hostile environments.Interchangeability with the other manufacturers configurations provides user flexibility for real world applications.





The range also has exclusive features such as breech-lock caps with a “3rd Hand” notch. Devices include plugs, receptacles, panel receptacles, and connectors to extend the reach of portable equipment. For personnel safety, ground fault protected receptacles, both portable and fixed, are available.







Plugs and Receptacles (Section PR)



· VP Series - 30 amp including new AT model

· VR Series - 60 amp including new AT model

· VPR Series - 100 amp including new AT model

· VSQ Series - 200 amp

· VWSQ Series - Interlocked Switched Receptacles

· VSQ-FS Series - Factory Sealed Receptacles

· VBQ Series - Interlocked Breaker Protected Receptacles

· VSI Series - Plugs and Switched Receptacles

· VCR SEries - Clean Room Receptacles

· KR Series - 20 amp, 30 amp, 60 amp

· UGP Series and UGR Series - Plugs and Receptacles, Adapter, Grips

                                           and Handlamps

· UGRC Series - Connector

· UGRP Series - GFI Protector Receptacle

· UGRGF Series - GFI Protector Receptacle

· UGFI Series - Ground Fault Protector













Killark 킬락 Plug Receptacle종합 PR 01.pdf

Killark 킬락 Plug Receptacle SBVAT 01.pdf

Killark 킬락 Plug Receptacle TFACPR 01.pdf

Killark 킬락 Plug Receptacle TFVPR 01.pdf





내 기술지원 및 구매상담처

CUSTOMER SUCCESS IDK

deric@jadongwha.com

www.tiatip.com





저작자 표시
신고
Posted by TIATIP TIATIP

댓글을 달아주세요:: 네티켓은 기본, 스팸은 사절


BLOG main image
공장자동화 공정자동화 오토메이션 전장 계장 통합자동화 통합전기전력 by TIATIP

카테고리

TI Story (959)
TIA (92)
TIP (194)
TIEx (603)
TIS (36)
TIO (23)
TiNoTe (10)
The OtherS (1)
