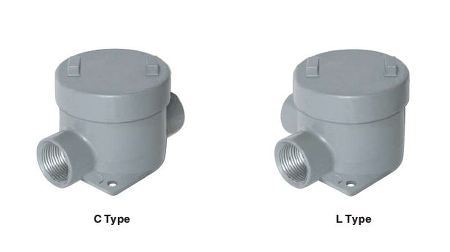

Killark, GEB시리즈, Fittings, Aluminum Outlet Bodies, C타입, L타입, F52
Killark, GEB시리즈, Fittings, Aluminum Outlet Bodies, C타입, L타입, F52
안녕하세요 TIATIP 입니다.
Applications
GEB series conduit boxes are installed in conduit systems within hazardous
areas to:
• Protect conductors in threaded rigid conduit
• Act as pull and splice boxes
• Interconnect lengths of conduit
• Change conduit direction
• Provide access to conductors for maintenance and future system changes
Features
• Suitable for NEMA 4X applications
• Integral mounting lugs
• Green ground screw standard
• External cover thread on body plus smooth integral hub bushing protects
conductor insulation when pulling
• 4 different hub arrangements
• Taper threaded hubs provide ground continuity
• External threaded body for additional wiring room
• Covers and gaskets furnished with boxes as standard
Factory Modification
• Back and wall (mounting pad area) suitable for drilling 1/2” or 3/4” NPT
or NPSM w/opening, consult factory
Material/Finish
Aluminum
• BODY & COVER Copper-free
aluminum (less than 4/10 of 1%)
• FINISH Electrostatically applied powder coating
Size Ranges
• Hub — 3/4" to 1-1/2"
• Cover opening — 3-1/2
Applicable Third Party Standards
UL Standards: 886 and 1203
CSA Standards: C22.2 No. 30
* 1-1/2" hub sizes require seal within 24" for Group B applicatons
Catalog Number (Hubbell, Killark)
GE
GEB
GEBC
GEBC-2
GEBC-3
GEBC-4
GEBC-5
GEBL-2
GEBL-3
GEBL-4
GEBL-5
