Killark, UNF/UNY시리즈, Fittings, Expansion Conduit Unions, F67
Killark, UNF/UNY시리즈, Fittings, Expansion Conduit Unions, F67
안녕하세요 TIATIP 입니다.
오늘은 킬락 Killark 의 Fittings 가운데, Conduit 확장유니온에 대해 살펴보도록 하겠습니다.
KILLRK
Fittings
Expansion Conduit Unions

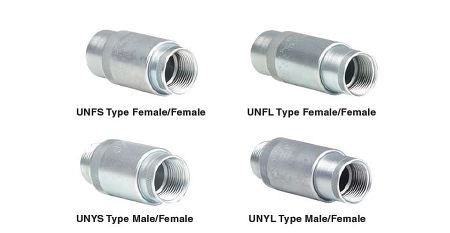

UNFS Series : Standard Length, Female x Female
UNYS Series : Standard Length, Male x Female
UNFL Series : Long Length, Female x Female
UNYL Series : Long Length, Male x Female
Application
• To provide for slight expansion and contraction of conduit runs
• To retrofit sections of conduit runs
Features
• Tapered threaded hubs (NPT) for rigid conduit and IMC
• Telescoping components allows conduit to be inserted between
fixed threaded hubs
• Internal copper alloy grounding spring assures positive grounding
• Close tolerance of mating parts eliminates passage of flame
• Compact diameter allows use where conduit is closely spaced
• Available in standard and long style, male and female version
Material/Finish
Body/Sleeve — Steel/Zinc Electroplate
Grounding Spring — Beryllium Copper/Natural Finish
Catalog Number (Hubbell, Killark)
Hubbell,Killark,UNF,UNY,UNFS1,UNFS2,UNFS3,UNFL1,UNFL2,UNFL3
UNYS1,UNYS2,UNYS3,UNYL1,UNYL2,UNYL3
Killark Connectors Fittings F.pdf
