Hawke Exd Connector, InstrumEx 기술사양

자동화닷컴 2014. 7. 5. 16:35

안녕하세요 TIATIP 입니다.

오늘 이 시간에는 호크 방폭커넥터 제품군 가운데, Instrument 연결 애플리케이션에 적합한 Hawke InstrumEx 시리즈를 살펴보도록 하겠습니다.

HAWKE

Range For Harsh and Hazardous Locations

Hazardous Area Connector

InstrumEx

IECEx/ATEX Certificate

Overview

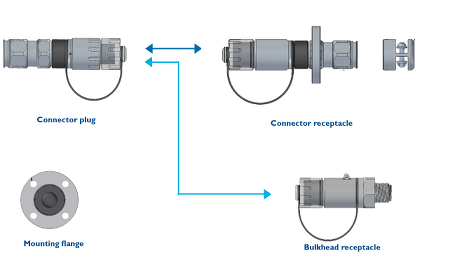

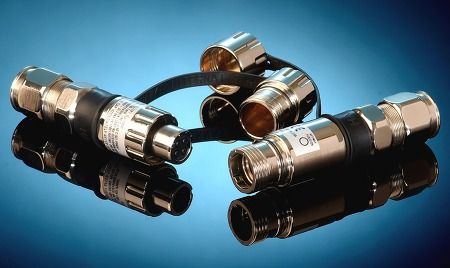

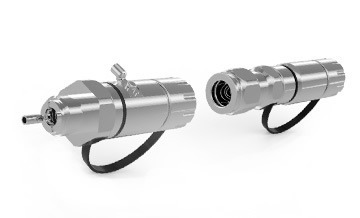

This revolutionary design allows the live mate and de-mating of signal and low power in hazardous areas safely and quickly. The InstrumEx connector is available with two insert options:

The 4-way option will accept cores ranging between 0.5mm² and 2.5mm² and can operate up to a maximum current of 10A (AC1) at 250V AC & 2.5A (DC1) 60V DC.

The 8-way option, designed predominantly for Ethernet applications, will accept cores ranging between 0.14mm² and 0.37mm² and can carry 1A (AC1) at 60V AC & 0.5A (DC1)60V DC. InstrumEx connectors include an integral Hawke cable gland for easy termination of both armoured and un-armoured cables.
